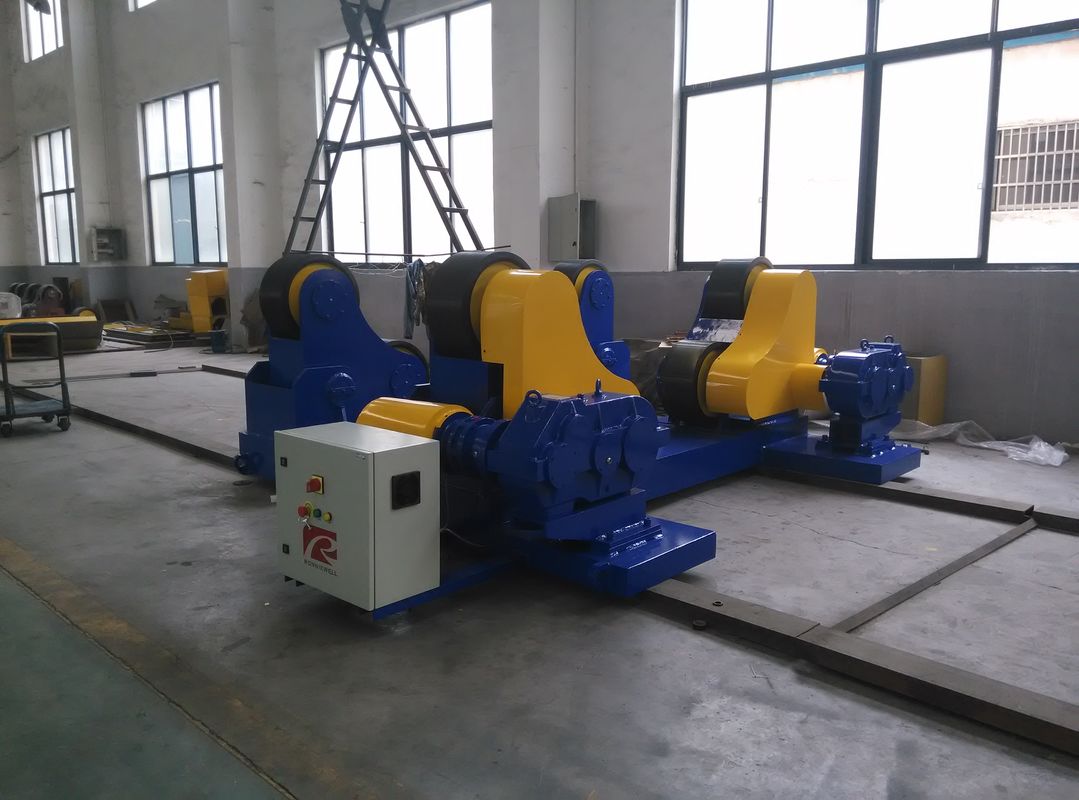

Vessel Self Alignment Pipe Welding Rotator

Vessel Self Alignment Pipe Welding Rotator

    • Vessel Self Alignment Pipe Welding Rotator
    • Vessel Self Alignment Pipe Welding Rotator
    • Vessel Self Alignment Pipe Welding Rotator
    • Vessel Self Alignment Pipe Welding Rotator
    • Vessel Self Alignment Pipe Welding Rotator
  • Vessel Self Alignment Pipe Welding Rotator

    Product Details:

    Place of Origin: Wuxi, China
    Brand Name: Ronniewell
    Certification: CE, ISO, Certification of original
    Model Number: HGZ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: To be confirmed with us
    Packaging Details: Mainframe naked, spare parts packed in case
    Delivery Time: 30 working days after down payment
    Payment Terms: 30% TT in advance, 70% TT before the shipment
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Features: Movable|high Efficient Type: Self-aligned
    Usage: Pipeline Welding Application: Vessel
    Certification: CE Product Name: Pipe Welding Rotator
    High Light:

    Tube Rotator for welding

    ,

    Vessel Turning Rolls





    Self-alignment Vessel Turning Rolls / Tube Rotator for welding









    Quick Detail:



    Self Aligning Rotator construction such that the trunnion brackets which support the wheels automatically align themselves when changing from one diameter to another, no manual adjustment whatsoever is required.





    Description:



    Each section supports the vessel / Job on four points ensuring better traction, and on machines of 3 T to 500 T capacity and upwards 50 metric tonnes all four wheels of the drive section are positively driven. This four point suspension is an added advantage when on handling thin walled vessels.







    Applications:





    This bolt adjustable welding rotator is produced according to MMBEI Standard ZBJ33003-1990. Self-design and manufacture combined the advantages of oversea competitors and requirements of domestic and overseas customers. It is suitable for automatic welding of circular seam cylinder, with advantages of practical, reliable, stable and easily operates etc. It is widely used in the range of job cutting, polishing, assemble etc.. It is one of ideal equipments of improve automaticity and efficiency.







    Specifications:





    If you do not see anything that matches your requirements please contact us to discuss your needs further.



    Type

    HGZ-5

    HGZ-10

    HGZ-20

    HGZ-40

    HGZ-60

    HGZ-80

    HGZ-100

    Payload  (T)

    5

    10

    20

    40

    60

    80

    100

    Suitable size of job(mm)

    Minφ

    250

    320

    500

    600

    750

    850

    1000

    Maxφ

    2300

    2800

    3500

    4200

    4800

    5000

    5500

    Roller Specification(mm)

    PU wheel
    Diameter(mm)

    250

    300

    350

    400

    450

    500

    500

    PU wheel
    Width(mm)

    100

    120

    120

    120

    120

    120

    120

    Metal wheel
    Diameter (mm)

    240

    290

    340

    390

    440

    490

    490

    Metal wheel
    Width (mm)

    20

    25

    30

    40

    50

    60

    80

    Roller speed  m/h

    6-60

    6-60

    6-60

    6-60

    6-60

    6-60

    6-60

    Power of motor (KW)

    0.75

    1.1

    1.5

    3

    4

    4

    5.5

    Speed adjusting way

    VFD







    Competitive Advantage:





    ● Inverter and Main electric elements are Siemens/Schneider or equal brand.

    ● Motor is UK brand Invertek.

    ● VFD rotary speed control, improving the reliability of operation.

    ● Steel or PU roller which can ensure a long time using (at least 2 years).

    ● This welding rotator with lubrication system.

    This welding rotator accept testing before delivery.

    This welding rotator accept special design and custom.
