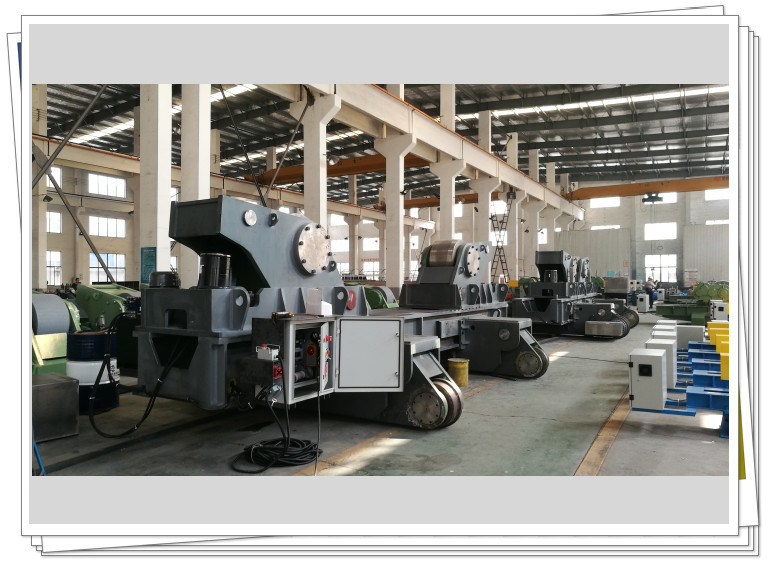

1000 Tons Hydraulic Jacking Welding Rotator

1000 Tons Hydraulic Jacking Welding Rotator

1000 Tons Hydraulic Jacking Welding Rotator
1000 Tons Hydraulic Jacking Welding Rotator

Product Details:

Place of Origin: China
Brand Name: Ronniewell
Certification: ISO/CE
Model Number: HGKZ-1000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: contact with us
Packaging Details: Seaworthy package
Delivery Time: 40working days
Payment Terms: L/C, T/T
Supply Ability: 30sets/month
Contact Now
Detailed Product Description
Configuration: 2unit/set Capacity: 1000t/set
Application: Offshore Monopile/Windmill Trolley: Motorized Trolley Travel On The Rail
Roller Rotation: Idler Without Rotating Service: Engineer Service On Site
High Light:

Offshore Windmill welding rotator

,

W / t Move Trolley welding rotator



1000t Hydraulic Jacking Welding Rotator W/t Move Trolley for Offshore Windmill





Brief introduction:



Heavy duty 1000T/SET capacity special designed for offshore windmill/monopile/petrochemical/cryogenic tank and so on industries.

Stable & safety hydraulic driven system.

Motorized trolley moving on the rail.





Other Available Model Technical Parameters



Model HGKZ-5 HGKZ-10 HGKZ-20 HGKZ-40 HGKZ-80 HGKZ-160
Max.Load capacity(ton) 5 10 20 40 80 160
Vessel dia. Range (mm) 250~2300 320~2800 500~3500 600~4200 800~5000 1000~6000
Dia.& width of roller (mm) 250X120 300x140 350x160 400x180 450x2x200 500x2x260
Adjustable mode Two hydraulic cylinder independent adjustment
Motor power (kW) 0.37 0.55 1.1 1.5 3 4
Roller speed (m/min) Idler without power





Check the offshore monopile welding production working site:



https://youtu.be/753L-i0wctM





Feature:


  • The hydraulic jacking rotator is composed by two units of roller mechanism installed on the same rotator base.Each roller mechanism has steel wheel roller.

  • Roller base is made of welded plate,with feature of high strength to make sure no deformation in long period using span.

  • Rotator base & boring is integrated process,so as to guarantee the roller rotating precision.

  • Roller surface is steel wheel for heavy duty type work piece.

  • The completed structure is processed by temper destressing.It will be pre-treatment before painting, one layer of zinc rich primer,two layer of polyurethane finish.





Workshop:



1000 Tons Hydraulic Jacking Welding Rotator 0



Exhibition:

1000 Tons Hydraulic Jacking Welding Rotator 1





Name of the machine:


welding rotator, pipe welding rotator, pipe turning rolls, welding turning rolls, welding roller, tank turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned welding rotator, self-aligning welding rotator, self adjustable welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional welding rotator, bolt adjustable welding rotator, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station
