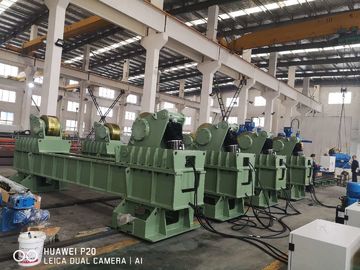

400T Hydraulic Jacking Fit Up Pipe Rotators

400T Hydraulic Jacking Fit Up Pipe Rotators

400T Hydraulic Jacking Fit Up Pipe Rotators
400T Hydraulic Jacking Fit Up Pipe Rotators

Product Details:

Place of Origin: CHINA
Brand Name: RONNIEWELL
Certification: CE ISO
Model Number: HGKZ-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: By Contact discuss
Packaging Details: naked and fixed by steel wire with the container
Delivery Time: 12-15 weeks
Payment Terms: L/C, T/T
Supply Ability: 40 sets/year
Contact Now
Detailed Product Description
Color: Apple Green Condition: New
Weight: Customized Required Dimensions: Customized
Usage: Welding Rotator,Pipe Welding,WELDING SUPPORT Warranty: 13 Month
After-sales Service Provided: Online Support,Video Technical Support,Field Installation,commissioning And Training,Field Maintenance And Repair Service Operation Way: Remote Control
Loading Capacity: 1000T Drive Mode: Motor+Reducer
High Light:

Fit Up Rotators

,

400T Pipe Rotators

,

Remote Control Pipe Rotators

400T Hydraulic Jacking Fit Up Rotator For Monopile Windtower Offershore Windmill









1 Group pair lifting drive Hydraulic.
2 Roller lifting and declining stroke

Lifting : 150mm or more

Declining: 50mm or more.

3 Hydraulic station

1.Independent hydraulic station for each rotator.

2.Each hydraulic cylinder is equipped with an independent oil pressure gauge, and there is a comparison table of pressure-convertible load, which is recorded in the manual.

4 Rotator control function

1.Low voltage (24V) wired (30M)/wireless remote control (100M).

2.Control cable length 30m, and must be provided a set control cable for spare parts.

3.The grounding of the electrical components of the control box must meet the electrical code requirements.

4.Cylinder lifting stroke and walking control.

5.Stop & E-stop button and synchronized function.

6.The remote control must have the above functions.

7.If the wireless remote control is damaged, it can use the wired control to operate.

8.Each hydraulic cylinder can operate independently and with linkage capability

5 Power cable

1.Voltage 380V/3Ph/60HZ±10%.

2.Cable rack + cable take-up device +

30m flexible cable.

3.European socket

(400*4P/63A(3P+E).

6 Cable specification

1.Flexible cable.

2.Mobile Rubber Cable 600V 2PNCT (EPRN)

Insulated Neoprene Cabtye Cover

14mm x 4C.

7 Electronic control part

1.Hydraulic station and power control box need to be protected.

(windproof, dustproof, waterproof).

2.Electronic control box and elements

can be fast disassembled.

3.The electronic control box and

components need to adapt to the

subtropical & island-type climate.

4.Perfect protection circuit

(windproof, dustproof, waterproof).

8 Electronic components brand Schneider
9 Connector brand

Wieland 16pin/24pin.

(Explosion-proof )

10 Transmission & gap protection Windproof, dustproof, waterproof.
11 Rotator weight and lifting method

1.The weight of the rotator must be clearly marked on the drawing and sprayed on the rotator.

2.The rotator needs to provide and set the ideal lifting position and method and mark it on the drawing

12 Rotator stabilization and anti-roll device

1.Set holding track device, the design drawings must be provided and recorded in the manual.

2.A stable device in contact with the ground is required at the periphery of the rotator.

3.When the rotator is fully loaded and not moving, the rotator can be stabilized.

13 Linkage between rotator and welder If necessary, rotator manufacturer should open the roller bed system and cooperate with the welding manufacturer to integrate system.
14 Protective Need to set up a variety of protection devices, such as ELCB, Electrical fuse, and so on.
15 Maintenance spares 1.Must be used international label.
16 Paint requirements

1.All metal surfaces must be sandblasted

and painted to SSPC-Sa2.5.

2.Zinc primer coat 1 layer (75 μm / 1 layer) and finish coat 2 layer(250 μm / 2 layer).

3.Paint color: Green - RAL6011.



Ronniewell ISO certification.pdf









Main technical parameter:

400T Hydraulic Jacking Fit Up Pipe Rotators 0



General drawing:

400T Hydraulic Jacking Fit Up Pipe Rotators 1
