Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley

Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley

Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley
Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley

Product Details:

Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO,CSA
Model Number: HGK2000

Payment & Shipping Terms:

Minimum Order Quantity: 1set (including 1 power unit & one idler unit)
Price: Contact for detail
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 50 working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 60 set/year
Contact Now
Detailed Product Description
Usage: Welding Production Automation Line Application: Offshore Monopile/wind Tower/refinery Tank
Load Capacity: 2000t Structure: With Motorized Trolley
Job Diameter: 1000mm~10000mm Speed Control: Variable Frequency
Roller Material: Steel Roller After Sale Service: Engineer Service On Site
High Light:

pipe rotator

,

pipe rotators for welding





Offshore Monopile Welding Production Line 2000T Welding Rotator Fit up Rotator Outdoor Using






Brief introduction:


2000T welding rotator is part of the offshore monopile welding production automation line. Together with hydraulic fit up rotator, it is using to fit up the offshore monopile & complete the joint welding.



Feature of HGK2000 welding rotator:

  • HGK series rotator have a strong and durable construction with creates a very high stability.
  • Top-class electronic components, stepless adjustable speed of the driven part in CE marked.
  • The roller is full steel wheel for heavy duty loading. The wheel is forged steel processed.
  • The favourable price performance ratio yields will ensure a quick payback of your investment.
  • Tailor-made welding turning rolls are available according to your special requirements.




Welding rotator description:

  • Set of welding rotator usually is consists of 2 unit,say, a motorized drive (power) unit & an idler supporting unit.

  • The power unit is driven by a heavy duty AC motor.
  • There is motorized trolley at bottom of the pedestal, by which the welding rotator could move along the rail.
  • The motor is designed according to international proven specifications to ensure constant speed with outer balance load of 15%.
  • The inverter comes with a remote control panel (operator pendant) with interlocking reversing systems operating at temperatures in excess of 60%.
  • Capcity of welding turning roll is various ranging from 2tons to 1200 ton. Bigger capacity are custom built upon request.




Main technical parameters



Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley 0

Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley 1





Application:

  • Pipe manufacturing industries

  • Wind power fabrication

  • Chemical & fuel storage tank fabrication

  • Any heavy cylindrical job
  • Pressure vessel
  • Offshore monopile
  • Offshore wind tower

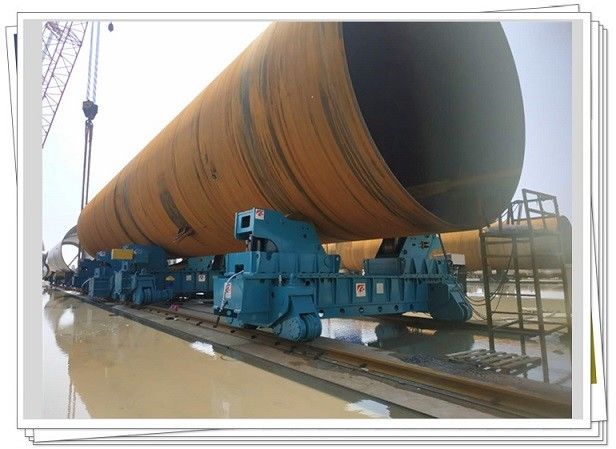

Workshop picture:
Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley 2




Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.



Name of the machine:
welding turning roll, pipe welding turning roll, pipe turning rolls, welding turning rolls, welding roller, welding turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned welding turning roll, self-aligning welding turning roll, self adjustable welding turning roll, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional welding turning roll, bolt adjustable welding turning roll, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station

Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley 3

Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley 4

Outdoor 2000T Fit Up Welding Rotator With Motorized Trolley 5
