Anti Creep 40t Auto Pipe Welding Rotator Rubber Wheel Bolt adjustable

Product Details

Place of Origin: China

Brand Name: Ronniewell

Certification: CE,ISO

Model Number: HGK40

Payment & Shipping Terms

Minimum Order Quantity: 1set (including 1 power unit & one idler unit)

Price: pls confirm with us

Packaging Details: Mainframe naked, spare parts packed in case

Delivery Time: 30working days

Payment Terms: 30% TT in advance, 70% TT before the shipment

Supply Ability: 40set/month

Get Best Price
Highlight:

Anti Creep Pipe Welding Rotator

,

40t Automatic Pipe Welding Rotator

,

Bolt Adjustable Pipe Welding Rotator

Equipment:
40T Tank Roller Rotator
Composed:
1power & 1idler
Structure:
Fixed Without Rail Cars
Feature:
Anti Creep
Load Capacity:
40000kg
Pipe Dia.range:
600~4200mm
Roller Material:
Polyurethane
Speed Contorl:
Variable Frequency Driving
Equipment:
40T Tank Roller Rotator
Composed:
1power & 1idler
Structure:
Fixed Without Rail Cars
Feature:
Anti Creep
Load Capacity:
40000kg
Pipe Dia.range:
600~4200mm
Roller Material:
Polyurethane
Speed Contorl:
Variable Frequency Driving
Anti Creep 40t Auto Pipe Welding Rotator Rubber Wheel Bolt adjustable

Anti Creep 40t Tank Roller Rotator Rubber Wheel 4m Pipe Auto Welding Turning Roll







Brief introduction:



Tank roller rotator with 40t load capacity suitable for diameter 600mm~4200mm diverse size work piece;



Mechanical anti-creep structure;







Detail description of tank roller rotator:



  1. It is designed according to internationally proven specifications to ensure constant speed with outer balance load of 15%.

  2. Standard with 1 power rotator & 1 idler rotator, total load capacity 40ton.

  3. The power unit is driven by a heavy duty AC motor.

  4. The heavy duty wheels are designed to 90 durable hardness with high stress PU cushion mounts to absorb shock loads and prevent gear box damage.

  5. The DC electronic function or inverter comes with a remote control panel / operator pendant with interlocking reversing systems operating at temperatures in excess of 60%.

  6. Idler unit with anti creep fixture. The structure is simple but very effective.

  7. Various models ranging from 5 tons to 500 ton capacity.






Functions:



  1. Forward/stop/reverse

  2. Rotation speed

  3. Driving vehicle forward/stop/reverse

  4. Emergency-stop

  5. Anti drift function.





Technical parameters:



Model

HGK-40

Max.Load capacity(ton)

40

Vessel dia. Range (mm)

600~4200

Dia.& width of roller (mm)

400x180

Adjustable mode

Bolt adjustable

Motor power (kW)

2x1.5

Roller speed (m/min)

0.1~1 Variable Frequency Drive






Applied industry:

  1. Wind power fabrication

  2. Pipe manufacturing industries

  3. Pressure vessels

  4. Chemical & fuel storage tank fabrication

  5. Any heavy cylindrical job







Feature:

  1. The tank roller rotator have a strong and durable construction with creates a very high stability.

  2. The wheel is steel wheel fully covered polyurethane.

  3. These tank roller rotators have top-class electronic components, stepless adjustable speed of the driven part in CE marked.

  4. The favourable price performance ratio yields will ensure a quick payback of your investment.

  5. We also provide tailor-made HGK welding rotators according to your special requirements.

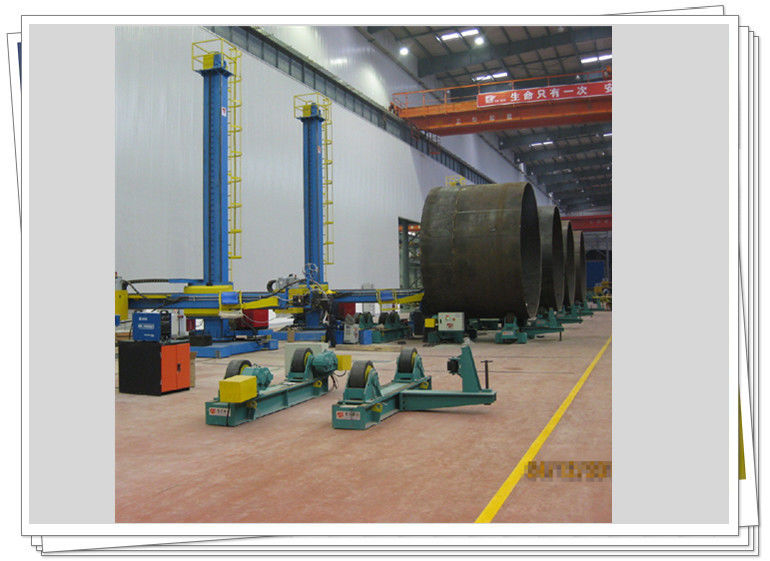

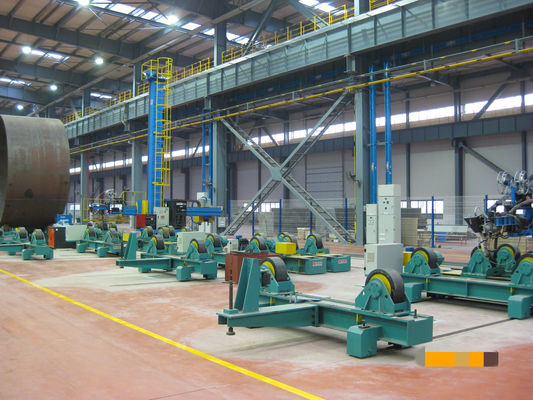

Exhibition picture:
