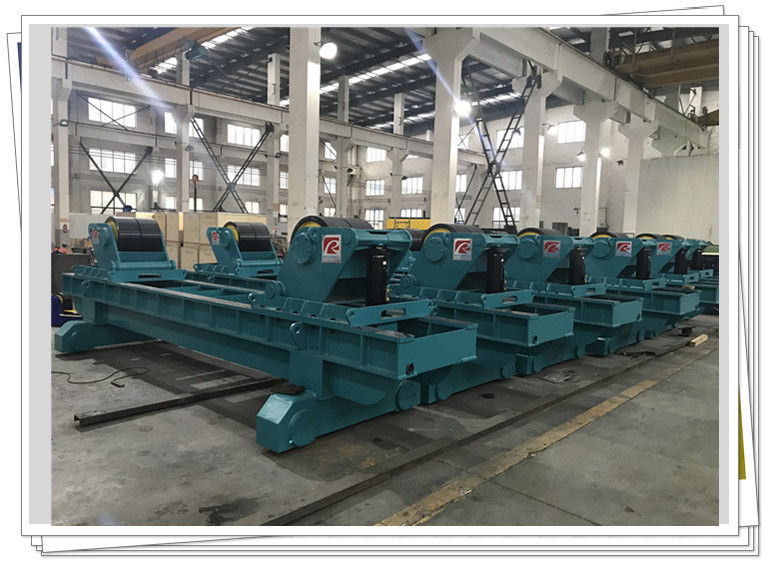

Offshore Wind Tower 150t Movable Welding Turning Roller Rubber Wheel

Offshore Wind Tower 150t Movable Welding Turning Roller Rubber Wheel

Offshore Wind Tower 150t Movable Welding Turning Roller Rubber Wheel
Offshore Wind Tower 150t Movable Welding Turning Roller Rubber Wheel
Offshore Wind Tower 150t Movable Welding Turning Roller Rubber Wheel
Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO
Model Number: HGKZ-150
Payment & Shipping Terms:
Minimum Order Quantity: 1set (include 2pcs)
Price: Confirm with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 45set/month
Contact Now
Detailed Product Description
Equipment: 150t Movable Fit Up Rotator Structure: With Manual Trolley
Work Load Limit: 150t/pair (2idler) Tower Dia. Range: 1000mm~7000mm
Wheel Center Distance: Manual Adjustable Wheel Material: Rubber (Polyurethane)
Wheel Seat: Hydraulic Liftable Control: Pendant Controller
High Light:

Movable Welding Turning Roller

,

150t Welding Turning Roller

,

Rubber Welding Turning Roller

Offshore Wind Tower Growing Line 150t Movable Fit Up Rotator Rubber Wheel Weld Roller





Brief introduction:

  • Fit up rotator with safety work load 150t/pair (2 idler) for offshore wind tower assembly growing line.

  • Rubber wheel hydrauilc liftable, with manual trolley moving on the rail



Offshore Wind Tower 150t Movable Welding Turning Roller Rubber Wheel 0

Offshore Wind Tower 150t Movable Welding Turning Roller Rubber Wheel 1

Product description:

  • Movable fit up rotator is composed by pair of idler rotator, hydraulic pump station & electric control system

  • Each of the idler rotator is composed by hydraulic liftable wheel seat, pair of PU coated wheel, pedestal with reserved bolt screw for wheel center distance adjustable & maual trolley under pedestal.

  • Each of the wheels are liftable via hydraulic cylinder driven, by which, it could make the tower section displacement on vertical,horizontal or even inclined direction. The edge of the sections would be conveniently aligning for tackle welding.

  • The fit in sections are conveyed backward by movable rotator.Another section will be placed in front of the fit in section.

  • Meanwhile welding the inner & outer circumferential seam.

  • Repeat above procedure to complete the whole sections fit up





Main Technical Parameters



Model HGKZ-150
Work load limit (ton) 150
Vessel dia. Range (mm) 1000~7000
Dia.& width of wheel (mm) 500x260mmx2pcs
Adjustable mode Two hydraulic cylinder independent adjustment
Roller speed (m/min) Idler without power







Feature:

  • The movable fit up rotator is mainly used for cylindrical(or low angle taper)work piece fit up procedure.

  • Rotator base is made of welded plate,with feature of high strength to make sure no deformation in long period using span.

  • Rotator base & boring is integrated process,so as to guarantee the roller rotating precision.

  • Wheel surface is coated rubbler layer. Using polurethane material instead of usual rubber. With extra support strength & rigidity.

  • The PU wheel enlarged contact surface,enhanced using life. Roller steel core processed by unique working craft,the coated PU will keep away from peeling off issue.

  • Completed structure is processed by temper destressing.It will be pre-treatment before painting, one layer of zinc rich primer,two layer of polyurethane finish.

  • Electric system is composed of electric cabinet & remote control box.





Application:

  • Offshore foundation (monopile, suction bucket, sea pile)
  • Offshore wind tower
  • Pressure vessels
  • Oil and gas tank
  • Petrochemical refinery column
  • Chemical & fuel storage tank fabrication
  • Pipe manufacturing industries
  • Any heavy cylindrical job





Package & Delivery:

Offshore Wind Tower 150t Movable Welding Turning Roller Rubber Wheel 2





8x8 Column Boom Manipulator Welding For Vessel Tower 0



8x8 Column Boom Manipulator Welding For Vessel Tower 1



8x8 Column Boom Manipulator Welding For Vessel Tower 3

8x8 Column Boom Manipulator Welding For Vessel Tower 4



Seam Tracker Central Operate Tank Tower SAW Welding Manipulator 4

What Ronniewell can do for Ronniewell customers:


  • Give you high quality products.
  • Give you five-star price.
  • Give you suitable recommendation.
  • Give you good after-service.
  • Give you professional technical guide.
  • Warmly welcome you visit our factory.


Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.


Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
