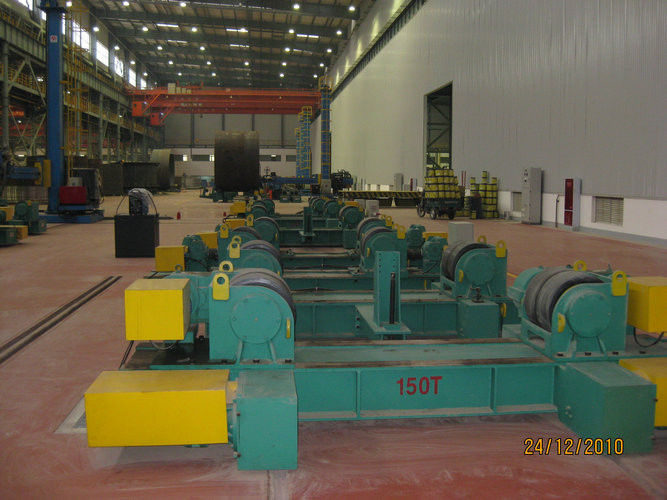

Conventional Heavy Duty Rotator Rotator For Welding , 150 Tons

China Conventional Heavy Duty Rotator Rotator For Welding , 150 Tons supplier

Large Image :  Conventional Heavy Duty Rotator Rotator For Welding , 150 Tons

Product Details:

Place of Origin: Wuxi, China
Brand Name: Ronniewell
Certification: CE, ISO, Certification of original
Model Number: HGK

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: To be confirmed with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30 working days after down payment
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 20 sets per month
Detailed Product Description
Features: Movable|high Efficient Roller Material: Polyurethane|Steel
Type: Conventional Loading Capacity: 150 Tons
Application: Pipe Certification: CE
Color: Green Product Name: Welding Rollers



Conventional Heavy Duty Rotator Rotator For Welding , 150 Tons





Quick Detail:



According to capacity the Rotators are provided with all Polyurethane wheels with overload disc and all steel wheels.

The Rotator base fabrication, or chassis, is designed and fabricated to carry the weight of the vessel / Job and incorporates a contingency for shock loading. It is important that the design eliminates any distortion which can lead to misalignment of the rollers.





Description:



Conventional Rotators are built in capacities from 1T to 2000 tonnes. The frame is of robust fabricated construction and is machining on the top and underneath to ensure perfect alignment. Both the drive and the idler frames are provided with robust fabricated and machined wheel brackets which support the axles and bearings of the rollers.





Applications:



This welding rotator has the excellence point as the full function, convenient operation and high automatic degree, which is the ideal equipment to finish the the high quality welding and automatic welding for the different vessels.







Specifications:



If you do not see anything that matches your requirements please contact us to discuss your needs further.



Type

Max. load (kg)

suitable size of job (mm)

wheel Diameter and Width (mm)

Linear speed m/h)

Motor power (Kw)

Change
Speed way

PU wheel

Metal wheel

HGK 5

5000

Φ250-2300

Φ250×100

2×Φ240×20

6-60

2×0.37

Veriable frequency stepless driving


HGK10

10000

Φ320-2800

Φ300×120

2×Φ290×25

6-60

2×0.55

HGK20

20000

Φ500-3500

Φ350×120

2×Φ340×30

6-60

2×1.1

HGK40

40000

Φ600-4200

Φ400×120

2×Φ390×40

6-60

2×1.5

HGK60

60000

Φ750-4800

Φ450×120

2×Φ440×50

6-60

2×2.2

HGK80

80000

Φ850-5000

Φ500×120

2×Φ490×60

6-60

2×2.2

HGK100

100000

Φ1000-5500

Φ500×120

2×Φ490×80

6-60

2×2.2

HGK160

160000

Φ1100-6000

/

Φ620×220

6-60

2×3

HGK250

250000

Φ1200-7000

/

Φ700×260

6-60

2×4

HGK400

400000

Φ1300-7500

/

Φ800×320

6-60

2×5.5

HGK600

600000

Φ1400-8500

/

Φ900×400

6-60

2×7.5







Competitive Advantage:



● Inverter and Main electric elements are Siemens/Schneider or equal brand.

● Motor is UK brand Invertek.

● VFD rotary speed control, improving the reliability of operation.

● Steel or PU roller which can ensure a long time using (at least 2 years).

● With lubrication system.

● Accept testing before delivery.

● Accept special design and custom.
