    Product Details:

    Place of Origin: Wuxi, China
    Brand Name: Ronniewell
    Certification: CE, ISO, Certification of original
    Model Number: ZHBJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: To be confirmed with us
    Packaging Details: Mainframe naked, spare parts packed in case
    Delivery Time: 30 working days after down payment
    Payment Terms: 30% TT in advance, 70% TT before the shipment
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Application: Pipe|tank Features: Standard
    Automation Degree: Automatic Moving Method:: Hydraulic
    Product Name: Pipe Welding Positioners Type: Elevating
    Usage: Workpiece|metal Welding
    High Light:

    Pipe Rotators for Welding

    ,

    pipe welding positioner

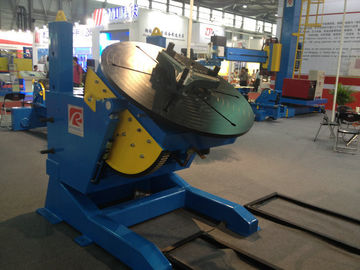

    Pipe Positioners Pipe Rotators for Welding , Rotary Welding Table






    Quick Detail:

    Positioners provide steel fabrication shops with the most up-to-date equipment for placing bulky fabrications in the ‘downhand’ position in the shortest possible time without the use of cranes and manpower. The positioners tables rotate at accurate and constant variable speeds and tilt through 135° with a high C.G. load rating covering almost all anglers for welding any angular job placed on it. Positioners can be supplied for interfacing with Column and Boom Manipulator.


    Description:


    The equipment mainly consists of drive rotator, idler rotator and electrical control system etc. Drive rotator

    is made up of base, pedestal, rollers and drive device, idler rotator without drive device.

    1:pedestal and roller base are welded structure, all the strength of the weld seam according to

    requirements such as welding, heat treatment after welding were annealed to remove internal stress and

    effective prevention of welding deformation.

    2:Drive device located on the two roller beds of the droved rotator, Drive device are consist of reducer

    and motor. The reducer adopts the special design gear and wheel reducer and which made by our

    company, with high transmission efficiency, large output moment. Drive unit droved by AC frequency

    conversion motor, and through reducer, thus drive the roller turning. The turning speed is VFD, and the

    speed can be adjusted in the range of  100-1000mm/min, and it can realize different welding requirement

    of different size work piece. Both drive and idler rotator equipped with traveling unit, easy for operating,

    and the idler unit with manual lock device, it can quick lock rotator on the rail. On the base of drive rotator

    equipped with a set of traveling motor, and traveling consists by two bevel gear reducer and two 1.5 KW

    motor, gear and wheel couple, and the drive and idler rotator droved on the rail by bevel gear reducer and

    gear and rack couple, traveling smoothly and convenient operating.

    3:The rollers are all Polyurethane material and without metal. Roller center distance can be adjusted to

    realize different size workpiece. When adjusting, just move the position of symmetrical roller seat, then

    fixed by bolts, easy and convenient, also with large anti-wallop strength..

    4:The equipment side of the idler rotator fitted with a mechanical gear wheel, gear wheel fixed in the holder

    with the rotating cylinder, while the rotation of power, to meet the welding requirements of different size

     cylinder workpiece, to prevent the shifting of the workpiece in the welding process holder behind the

    installation of a locking device to prevent the roller frame roll.

    5:Electric control system mainly consists of electric control box and remote panel. There are inverter, relay,

     terminal etc in the control box. Power switch is mounted on the door of electric control box. The alarm

    indication, alarm clear button on the panel of control box; the remote panel has roller forward, backward,

    stop button.




    Applications:



    This bolt adjustable welding rotator is produced according to MMBEI Standard ZBJ33003-1990.

    Self-design and manufacture combined the advantages of oversea competitors and requirements of

    domestic and overseas customers. It is suitable for automatic welding of circular seam cylinder, with

    advantages of practical, reliable, stable and easily operates etc. It is widely used in the range of job

    cutting, polishing, assemble etc.. It is one of ideal equipments of improve automaticity and efficiency.




    Specifications:




    Model

    Load capacity (kg)

    Turning speed
    (rpm)

    Tilting (rpm)

    Tilting angle(°)

    Worktable dia.
    (mm)

    Speed adjust way

    Max eccentric
    distance (mm)

    Max G-C
    distance (mm)




    ZHBJ-01

    100

    0.4-4

    By hand

    0-120

    400

    VFD

    100

    200



    ZHBJ-03

    300

    0.1-1

    By hand

    0-90

    600

    150

    200



    ZHBJ-03

    300

    0.1-1

    1

    0-90

    600

    150

    200



    ZHBJ-06

    600

    0.09-0.9

    1

    0-90

    1000

    150

    200



    ZHBJ-12

    1200

    0.05-0.5

    0.4

    0-120

    1200

    200

    250



    ZHBJ-30

    3000

    0.05-0.5

    0.23

    0-135

    1400

    200

    300



    ZHBJ-50

    5000

    0.05-0.5

    0.2

    0-135

    1500

    200

    300



    ZHBJ-100

    10000

    0.05-0.5

    0.2

    0-135

    2000

    200

    400



    ZHBJ-200

    20000

    0.05-0.5

    0.2

    0-135

    2000

    200

    400








    Competitive Advantage:




    • Robust all steel fabrication
    • Variable or single speed table rotation through 360°
    • Square or round table as desired. with T slots and concentric rings to facilitate fast and accurate alignment and clamping.
    • Power Operated Table tilting mechanism through 135°, including limit Switches to prevent over-run.
    • Centre spindle carried in sealed pre-loaded Timken bearings or, depending on capacity Large diameter crossroll bearing is provided.
    • Accurate machine cut steel gears.
    • Efficient built-in earthling. Totally enclosed electrical motors including electromagnetic breaks.
    • Pendant remote push button controls for all movements, together with speed potentiometer
