Gas Oil Tank Welding Rotator Pressure Vessel Welding Rotator Boiler Welding Rotator

Product Details

Place of Origin: CHINA

Brand Name: RONNIEWELL

Certification: CE ISO

Model Number: HGZ

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 2500-50000 USD/set

Packaging Details: spare parts packed in wooden case, mainfram naked and loaded into container

Delivery Time: 7-8 weeks

Payment Terms: T/T, L/C

Supply Ability: 100 set/month

Get Best Price
Highlight:

pipe welding tools

,

welding positioner turntable

Structure Type:
Self-alignment
Color:
Grey Or To Be Confirmed
Roller Material:
PU
Motor Brand:
INVERTEK (UK Brand)
Inverter:
Schneider Or Equal Brand
Control Type:
Wireless Or Wired Remote Control
Structure Type:
Self-alignment
Color:
Grey Or To Be Confirmed
Roller Material:
PU
Motor Brand:
INVERTEK (UK Brand)
Inverter:
Schneider Or Equal Brand
Control Type:
Wireless Or Wired Remote Control
Gas Oil Tank Welding Rotator Pressure Vessel Welding Rotator Boiler Welding Rotator

Gas Oil Tank Welding Rotator Pressure Vessel Welding Rotator Boiler Welding Rotator description:

  • The series  tank turning roll is absorbing advantages of similar products at home and abroad, designed and manufactured by us according to the operation requirements of several pressure vessel factories.
  • According with mechanical standard JB/T 9187-1999, the tank turning roll is the device for special purpose adopted to weld metal cylinder especially pressure vessel.
  • It has advantages of advanced technology, reliable quality and simple operation.
  • The tank turning roll series includes the self-alignment, the adjustable, the vehicle, the tilting and the anti-drift types.
  • This Self-aligned  tank turning roll is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.
  • It can be aligned by itself according to the size of the shell.
  • It can be controlled with AC frequency converter.The linear velocity is displayed by the digital.
  • It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range.
  • We also can design and customize various types of the welding rotator in accordance with the customers requirement.

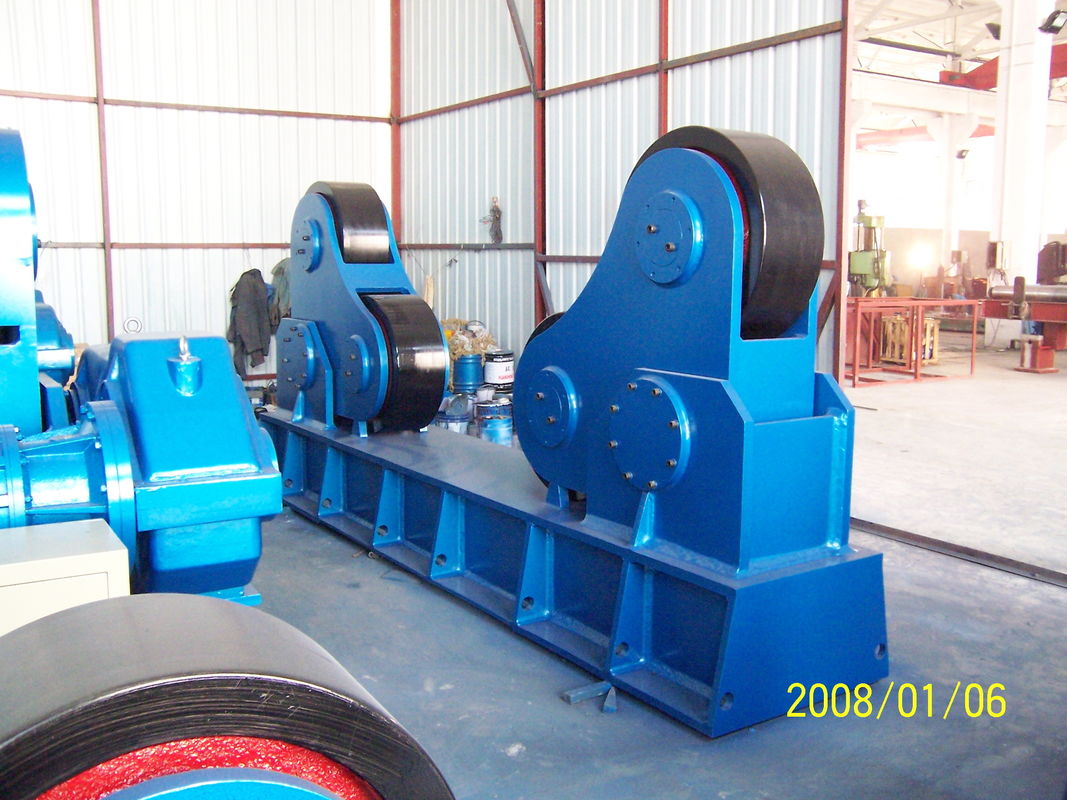

 Gas Oil Tank Welding Rotator Pressure Vessel Welding Rotator Boiler Welding Rotator 0

Gas Oil Tank, Pressure vessel ,Boiler , welding turning roll  function:

  • It is mainly used in switching position of work piece, to get the ideal welding position and speed.
  • It usually work matching with the equipments, like manipulator and welding machines to form the auto-welding system.
  • It also can be used in manual welding, assembling, polishing and crack-defection, etc.

 Gas Oil Tank Welding Rotator Pressure Vessel Welding Rotator Boiler Welding Rotator 1

Gas Oil Tank, Pressure vessel ,Boiler welding turning roll detail information:

  • Tank turning roll mainly consist of power unit, idler unit, electric control box and hand control panel.
  • Tank turning roll are used for the inside and outside circumferential and  longitudinal welding.
  • 20% overweight design, could making the rotator focus more.
  •  Each motors and Reducers have cover, careful design, ensure the SAFETY.
  • All the parts using well-known brands in China or other countries. Quality is reliable.
  • Speed control: Variable Frequency Drive (VFD)

 Gas Oil Tank Welding Rotator Pressure Vessel Welding Rotator Boiler Welding Rotator 2

Gas Oil Tank, Pressure vessel ,Boiler welding turning roll Main Technical Parameters

Model

HGZ-05

HGZ-10

HGZ-20

HGZ-40

HGZ-60

HGZ-80

Rated loading

(T)

5

10

20

40

60

80

Vessel diameter

range (mm)

250-2300

320-2800

500-3500

600-4200

750-4800

850-5000

PU roller

 dia. And width

(mm)

250*100

300*120

350*140

400*180

450*180*2

450*200*2

Linear speed

 (mm/min)

100-1000mm/min

Speed control

Variable frequency drive speed control

Motor power

(kW)

0.75

1.1

1.5

3

4

4



Application:

1. Pressure vessels

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job
