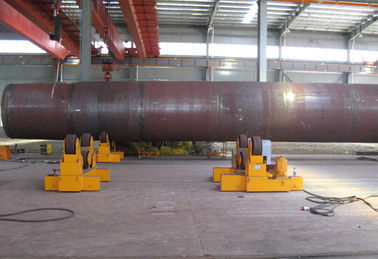

60T Pipe Weldment Used Self - Aligned Welding Rotator With Motorized Trolley

60T Pipe Weldment Used Self - Aligned Welding Rotator With Motorized Trolley

Brief introduction:

This seam welding turning roller adopts self aligmnet structure.

Center distance is auto adjust so as to suitable for various diameter weldments.

Seam welding turning roller function:

1. It is mainly used in switching position of cylinder weldments, to get the ideal welding position and speed.

2. It usually work matching with the equipments, like manipulator and welding machines to form the auto-welding system.

3. It also can be used in manual welding, assembling, polishing and crack-defection and so on.

4. Special purpose turning roller customization is available as per user demanding.

Feature of the seam welding turning roller:

1. Each motors and reducers have cover, careful design, ensure the safety.

2. 20% overweight design, could making the seam welding turning roller focus more.

3. All the parts using well-known brands in China or international. Quality is reliable.

4. Power unit roller is driven by dual motor. Driving moment is more balance & sufficient than single motor driven.

5. Variable frequency drive (VFD) control ensure the constant & stable working speed.

6. Turning roller is with motorized trolley. It shorten the prepare time for different length welments, largely elevating working efficiency.

More models technical parameters of the seam welding turning roller:

Option:

1. Hydraulic lifting for fit up pipes;

2. Anti creep function;

3. Polyurethane roller, Rubber Roller or steel roller;

4. Automatic traveling or Manual traveling on the rail;

5. Customization

Applied industry:

1. Wind power fabrication

2. Pipe manufacturing industries

3. Pressure vessels

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job




Detail description of seam welding turning roller :

1. The series seam welding turning roller is absorbing advantages of similar products at home and abroad, designed and manufactured by us according to the operation requirements of several pressure vessel factories.

2. Production is organized according with mechanical standard JB/T 9187-1999.

3. Other series welding turning roller,say, bolt adjustable, lead screw adjustable, tilting, anti-drift & other special types, is avaliable as per required.

4. This self-alignment seam welding turning roller is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.

5. It can be aligned by itself according to the size of the shell.

6. It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range.


Delivery picture:



 Company picture:



Video link

https://www.youtube.com/c/RonniewellAutomatedWeldingSolutionProvider

Welcome to follow us on following social media:

Facebook: https://www.facebook.com/weldingrotatorcn

LinkedIn: https://www.linkedin.com/in/automatedwelding

Name of the machine:
seam welding turning roller, pipe seam welding turning roller, pipe turning rolls, welding turning rolls, welding roller, seam welding turning rollers, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned seam welding turning roller, self-aligning seam welding turning roller, self adjustable seam welding turning roller, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional seam welding turning roller, bolt adjustable seam welding turning roller, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station;
