Movable SAW Automatic 6x6 Welding Manipulators With Welder Chair

Movable SAW Automatic 6x6 Welding Manipulators With Welder Chair

Movable SAW Automatic 6x6 Welding Manipulators With Welder Chair
Movable SAW Automatic 6x6 Welding Manipulators With Welder Chair

Product Details:

Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO
Model Number: LH6060

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Please confirm with us
Packaging Details: main frame naked, control box full covered with water-proof package
Delivery Time: 40days
Payment Terms: 30% down payment by TT, 70% balance before shipment
Supply Ability: 20 set/month
Contact Now
Detailed Product Description
Equipment: Automatic Welding Column Boom Manipulator Structure: Column Rotatable With Mobile Cart
Weld Head: LINCOLN Twin Arc Twin Wire SAW Weld Head Reachability: Stroke Vertical 6m X Stretch 6m
Operation: Pendant Controller Safety: Unti Fall/unti Turnover/safety Ladder
High Light:

SAW welding manipulators

,

Movable welding manipulators

,

6x6 welding manipulators

Quality Movable SAW Automatic Welding Column Boom Manipulator 6x6 With Welder Chair





Brief introduction:



Heavy duty automatic welding column boom manipulator with 6m x 6m stroke;



Equipped with LINCOLN dual arc dual wire SAW welding system;







Description of automatic welding column boom manipulator:



  • Automatic welding column boom manipulator is used to locate a weld head to a desired position for welding in a stable and secure manner.
  • Automatic welding column boom manipulator is a versatile and rugged solution to with 6m of lift and reach to duplicate the function of a highly skilled welder.
  • Welding is performed using twin wire twin arc submerged arc welding.









Main parameter:



Model LH6060
Structure:

Travel &

Rotation

Boom horizontal stroke : mm 6000mm
Boom vertical stroke : mm 6000mm
Boom horizontal speed :mm/min 150-1500
Boom vertical speed : mm/min 1000
Boom horizontal motor power :kW 0.55
Boom vertical motor power :kW 3
Column rotating angle ±180°
Column rotating speed- Optional :rpm 0.75
Column rotating motor-Optional : kW 0.75
Column rotating locking method By manual
Boom end max. loading 300kg




Automatic welding column boom manipulator feature:



  • The Automatic welding column boom manipulator are initially designed to save labor costs especially at lager workpieces and when a column boom is been used in combination with a positioner or rotator.
  • It is designed and robustly build to withstand rugged work environments.
  • Working with column boom welding manipulator is the next step in automated welding.
  • All vertical and horizontal guidings are precisely machined for smooth movement.
  • Solid state inverter for variable speed of horizontal travel and travel carriage.
  • High tensile roller chain used for vertical travel with the addition of a counter balance system with the column that provides smooth, effortless travel.
  • Anti-fall device and limit switches for all motions.







Application



1. Pressure vessels welding



2. Pipe manufacturing industries



3. Wind power fabrication



4. Chemical & fuel storage tank fabrication



5. Any heavy cylindrical welding job





Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 0

Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 1

Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 2

Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 3

Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 4

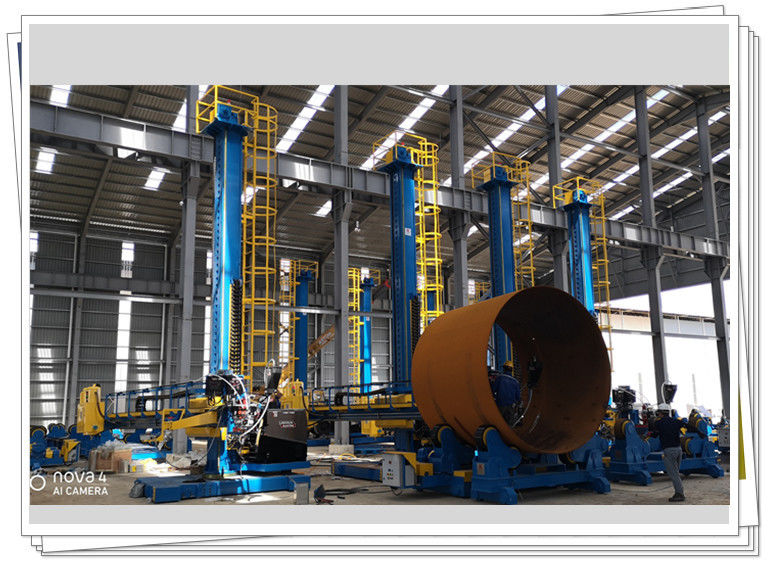

Delivery picture:

Column Boom Welding Manipulator Longitudinal Circumferential Seam Welding 0





Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.


Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.





Product name:
automatic welding center, column boom automatic welding center, CaB, automatic welding center boom,automatic welding machine, automatic welding center, cross beam column, welding manipulator;
