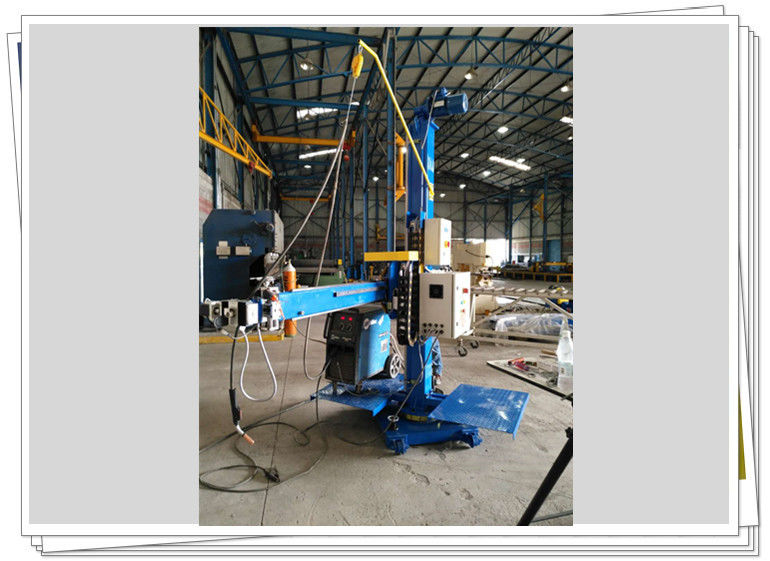

MIG 1.5x1.5 Column And Boom Welding Manipulator With Oscillator

MIG 1.5x1.5 Column And Boom Welding Manipulator With Oscillator

MIG 1.5x1.5 Column And Boom Welding Manipulator With Oscillator
MIG 1.5x1.5 Column And Boom Welding Manipulator With Oscillator

Product Details:

Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO
Model Number: LH1515

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Please confirm with us
Packaging Details: main frame naked, control box full covered with water-proof package
Delivery Time: 40days
Payment Terms: 30% down payment by TT, 70% balance before shipment
Supply Ability: 20 set/month
Contact Now
Detailed Product Description
Equipment: MIG Welding Manipulator Structure: Column Revolve & Manual Cart
Reachability: Vertical 1.5m X Stretch 1.5m Welding: MIG/CO2 Welding
Boom End: Cross Slider 50mmx50mm & Oscillator Operation: Pendant Controller
High Light:

Column And Boom Welding Manipulator

,

MIG Welding Manipulator

,

1.5x1.5 Welding Manipulator

Column Revolve Manual Cart Column Boom MIG Welding Manipulator 1.5x1.5 With Oscillator





Brief introduction:

MIG/CO2 automatic welding using column boom welding manipulator with 1500mm x 1500mm valid stroke.





Detail description of welding manipulator:



  • Welding manipulator is the automatic welding equipment composed together with welding power.
  • There are a number of designs for the manipulators, such as the stationary type, the stationary and rotating type, and the all orientation type.
  • The movement of the boom is adopted with inverter control.
  • Inverter controling is good in mechanic precise. It is accurate in positioning as well.
  • The welding manipulator can be used together with welding rotator or welding positioner.
  • It is widely used in industries as boiler, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.
  • It has the advantage of in advanced structure,complete function, easy operation, which ensures improving of welding quality.
  • According to the requirement, it can be adopted welding seam tracing and monitoring, welding flux recovery and feeding device.




Welding manipulator feature:


  • Auxiliary equipment for welding center.
  • Welding manipulator can be adopted with various welding power (Chinese or international famous brand) .
  • Stretching of cross boom adapts AC inverter stepless speed control and run with steady speed.
  • Head equipped with electric cross slides, which can adjust position of welding head.
  • Chain break-resistant and anti-slip device in boom to guarantee safety.
  • Braking device can ensure column work in safe environment.
  • Customized manipulator requirements are accepted.
  • Automatic flux feeding, recovering devices, wire feeder device, working platform and chair ( Optional ).





Main parameter:

Model LH1515
Structure:

Travel &

Rotation

Boom horizontal stroke : mm 1500
Boom vertical stroke : mm 1500
Boom horizontal speed :mm/min 200-2000
Boom vertical speed : mm/min 1000
Boom horizontal motor power :kW 0.37
Boom vertical motor power :kW 0.55
Column rotating angle ±180°
Column rotating locking method By manual
Boom end max. loading 80kg



Application



1. Pressure vessels welding



2. Pipe manufacturing industries



3. Wind power fabrication



4. Chemical & fuel storage tank fabrication



5. Any heavy cylindrical welding job



Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 0

Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 1

Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 2

Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 3

Tank SAW Welding Column Boom 4x4 With Welder Chair Motorized Cart 4



Points you may concern:

Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
