Tilting Pipe welding rotator

Tilting Pipe welding rotator
Tilting Pipe welding rotator Tilting Pipe welding rotator Tilting Pipe welding rotator Tilting Pipe welding rotator Tilting Pipe welding rotator Tilting Pipe welding rotator

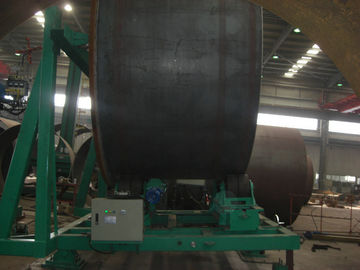

Large Image :  Tilting Pipe welding rotator

Product Details:
Place of Origin: Wuxi, China
Brand Name: Ronniewell
Certification: CE, ISO, Certification of original
Model Number: HGK
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: To be confirmed with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30 working days after down payment
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 40 sets per month

Tilting Pipe welding rotator

Description
Brand Name: Ronniewell Certification: ISO
Feature: High Speed Product Name: Pipe Welding Rotator
Speed Control: VFD Usage: Industrial
High Light:

welding rotators

,

welding equipment







Mechanical tilting Pipe welding rotator / Tank Turning Rolls With ISO Aprroved







Quick Detail:





The rotator is mainly used for the basis section flange welding, due to the structure of the wind tower is conical, so the rotator using screw can adjust the rollers' center distance, so that the slope of the tube section adjusted to the weld in horizontal position for welding.





Description:





The whole base of the rotator can be adjust by bolts to adjust the angle of the bracket, which can be tilted in the range of 0-30 degrees for the welding of the flange of basic segment.





Applications:





The rotator is mainly used for the basis section flange welding.





Specifications:





Max. loading: 20T

Vessel dia. range:1500-5000mm

PU roller dia.:350mm*160mm

Roller speed:100-1000mm/min

Motor power: 2*1.1kw

Angle adjusting range:15-20-30degree





Tilting Pipe welding rotator 0





Competitive Advantage:





  • Main elements:  Schneider or equal brand
  • Inverter: Schneider or equal brand
  • Motor: INVERTEK, UK brand
  • Wired remote control, and its’ cable is Germany TKD product.
  • Cables of Control electric box are using 0.75mm which accord to the national standard.
  • Screw bolt strength used in all 8.8, to ensure safety performance, while fully taking into account such as lifting equipment requirements for equipment can be easily installed, position adjustment and maintenance.
  • Germany imports of high-quality polyurethane, wheel guarantee replacement within two years
