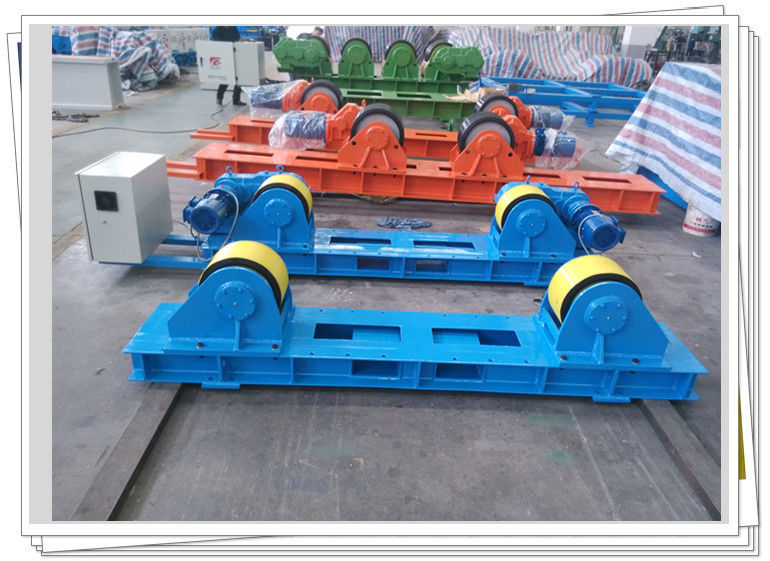

Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel

Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel
large.img.alt
Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel

Large Image :  Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel

Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO
Model Number: HGK20
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Contact for detail
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 45set/month

Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel

Description
Equipment: 20t Weld Roller Bed Type: Manual Adjustable For Diverse Diameter
Structure: Fixed Base Without Trolley Composed: 1power Bed & 1idler Bed
Load Capacity: 20t/pair Tank Dia.: 500~3500mm
Roller Material: Polyurethane Control: Pendant Controller
High Light:

Tank Vessel Pipe Welding Rotator

,

Rubber Wheel Pipe Welding Rotator

,

20T Pipe Welding Rotator

Tank Vessel Production Dia. 3.5m Weld Roller Bed 20T Fixed Base Rubber Wheel Rotator







Brief introduction:

  • Weld roller bed suitable for tank diameter upto 3500mm, length upto 15m. wall thickness unitl 12mm;
  • Load capacity 20t per set (1power bed & 1idler bed)




Weld roller bed feature:


  • Weld roller bed can adjust the center distance by reserved screw holes or lead screw in order to adapt to diverse diameter of work piece.

  • Double-motor driven, the roller driver adopt cycloidal planetary gear reducer or worm reduction gear mode.

  • According to the customer’s requirements, the roller has three forms: PU roller, steel wheels, steel and plastic combination wheel; it can joint control with other equipments.

  • The weld roller bed is mainly used for the welding,polish rubber lining and assembly of cylindrical roller shell, but also can assembly and weld together with other tooling for the cone inequality diameter rotary.

  • The weld roller bed series include the self adaptive, the manual adaptive, the self centering and so on types.





Technical parameters list:

Model

HGK-20

Max.Load capacity

20t

Vessel dia. Range (mm)

500~3500

Dia.& width

of roller (mm)



Rubber

350x150mm

Adjustable mode

Bolt adjustable

Motor power

2x1.1kw

Roller speed (m/min)

0.1~1 Variable Frequency Drive





Detail description:

  • Absorbing advantages of similar products at home and abroad, the weld roller bed is designed and manufactured by us according to the operation requirements of several pressure vessel factories.

  • According with mechanical standard JB/T 9187-1999, it is the device for special purpose adopted to weld metal cylinder especially pressure vessel.

  • It has advantages of advanced technology, reliable quality and simple operation.





Application:

  • Wind power fabrication
  • Pipe manufacturing industries
  • Pressure vessels
  • Chemical & fuel storage tank fabrication
  • Any heavy cylindrical job







Competitive Advantage:

  • With lubrication system.
  • VFD rotary speed control, improving the reliability of operation.
  • Steel or PU roller which can ensure a long time using (at least 2 years).
  • Inverter and main electric elements are Siemens/Schneider or equal brand.
  • Accept testing before delivery.
  • Accept special design and custom.





Workshop picture:

Tank Vessel Production 20T Pipe Welding Rotator Fixed Base Rubber Wheel 0







8x8 Column Boom Manipulator Welding For Vessel Tower 1



8x8 Column Boom Manipulator Welding For Vessel Tower 3

8x8 Column Boom Manipulator Welding For Vessel Tower 4



Monopile Production Equipment 12x6 Welding Column and Boom SAW Manipulator Welder Chair 4


What Ronniewell can do for Ronniewell customers:

  • Give you high quality products.
  • Give you five-star price.
  • Give you suitable recommendation.
  • Give you good after-service.
  • Give you professional technical guide.
  • Warmly welcome you visit our factory.


Points you may concern:

Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
