CE Approve 100T SAR Turning Rolls With Motorized Bogie

CE Approve 100T SAR Turning Rolls With Motorized Bogie
large.img.alt
CE Approve 100T SAR Turning Rolls With Motorized Bogie CE Approve 100T SAR Turning Rolls With Motorized Bogie CE Approve 100T SAR Turning Rolls With Motorized Bogie CE Approve 100T SAR Turning Rolls With Motorized Bogie CE Approve 100T SAR Turning Rolls With Motorized Bogie CE Approve 100T SAR Turning Rolls With Motorized Bogie

Large Image :  CE Approve 100T SAR Turning Rolls With Motorized Bogie

Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO
Model Number: HGZ-100
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: pls confirm with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 50set/month

CE Approve 100T SAR Turning Rolls With Motorized Bogie

Description
Equipment: 100t SAR Welding Roller Beds Type: Self Alinging Rotator
Structure: With Motorized Bogie Work Load Limit: 100t/pair (1power & 1idler)
Diameter Range: 1000mm~5500mm Wheel Material: Rubber (Polyurethane)
Rotation Speed: 100~1000mm/min VFD Adjust Operation: Pendant Controller/foot Pedal
High Light:

SAR Turning Rolls

,

100T Turning Rolls

,

CE welding turning rolls

CE Approve 100T SAR Welding Roller Beds Tank Tower Turning Self Aligning Rotator China Factory





Brief introduction:


SAR welding roller beds with work load limit 100t/pair (1power & 1idler);



With motorized bogie traveling on the rail, suitable for diameter range 1000mm~5500mm;







Description:

  • SAR welding roller beds adjust the wheel centerline setting automatically when the vessel is placed. There are no couplings to change and no pins to remove or replace.

  • Wheels are powered with AC motor and inverter providing a large range of rotation speeds.

  • Specially formulated high-load polyurethane tire design for high wear resistance.

  • Cast steel gearbox with double worm gear arrangement for smooth operation and minimum backlash.

  • Solid state inverter for precise speed control.

  • Hand-held operator pendants are standard, and optional foot switch controls are available.

  • SAR welding roller beds capacity is covering from 5ton to 300 ton.





Main Technical Parameters

Model

HGZ-100

Rated loading (T)

100

Vessel diameter range (mm)

1000-5500

PU roller  dia. And width (mm)

500*240

Linear speed  (mm/min)

100-1000mm/min

Speed control

Variable frequency drive speed control

Motor power (kW)

5.5

Traveling speed (mm/min)

3000mm/min

Traveling motor (mm/min)

2*3







Feature:

  • SAR welding roller beds can rotate different sizes of welding pieces without changing the wheel center.

  • Constant rotating and welding speed provides perfect welding results.

  • Rotating speed is digital display on electric cabinet.

  • Rotator units for constant rotating and positioning of workpieces, specially for mechanized welding applications (vessels, tanks, pipes, etc.).





Standard equipment:

  • Robust fabricated all steel frames with 4 wheels for each section (steel-core with polyurethane tyres);

  • Drive with AC-motor;

  • Variable rotation speed;

  • High and constant torque;

  • Main cable with plug;

  • Remote control with cable 6m;

  • Wireless pendant control is optional.





Functions:

  • Forward/stop/reverse;
  • Rotation speed;
  • Driving trolley forward/stop/reverse ;
  • Emergency-stop;



Delivery photo:

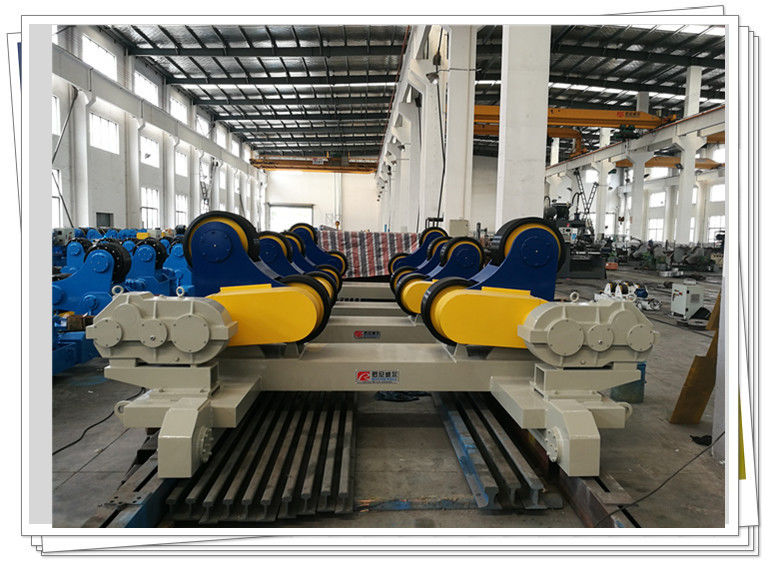

CE Approve 100T SAR Turning Rolls With Motorized Bogie 0





8x8 Column Boom Manipulator Welding For Vessel Tower 0



8x8 Column Boom Manipulator Welding For Vessel Tower 1



8x8 Column Boom Manipulator Welding For Vessel Tower 3

8x8 Column Boom Manipulator Welding For Vessel Tower 4



Seam Tracker Central Operate Tank Tower SAW Column & Booms Auto Welding Manipulator 4

What Ronniewell can do for Ronniewell customers:


  • Give you high quality products.
  • Give you five-star price.
  • Give you suitable recommendation.
  • Give you good after-service.
  • Give you professional technical guide.
  • Warmly welcome you visit our factory.


Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.


Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.


After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
