Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO
Model Number: HGK-400
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Please confirm with us
Packaging Details: seaworthy package
Delivery Time: 40days against confirmation
Payment Terms: 30% downpayment by T/T, 70% balance before shipment;
Supply Ability: 30set/month

Suction Bucket Jacket Welding Rotator Embrace Hydraulic Support Arm Offshore Foundation

Description
Equipment: 400t Welding Rotator Composed: Pair ( 1power Unit & 1idler Unit)
Work Load Limit: 400t/pair (1power & 1idler) Job Dia. Range: 3000mm~13000mm
Wheel Material: Steel+Rubber(Polyurethane)+Rubber+Steel Operation: Pendant Controller
Feature: With Embracing Hydraulic Support Arm Usage: Suction Bucket Jacket Production Line
High Light:

suction bucket jacket welding rotator

,

Offshore Foundation Welding Rotator

,

Welding Offshore Foundation Rotator

Suction Bucket Jacket Welding Rotator Embrace Hydraulic Support Arm Offshore Foundation



Brief introduction:

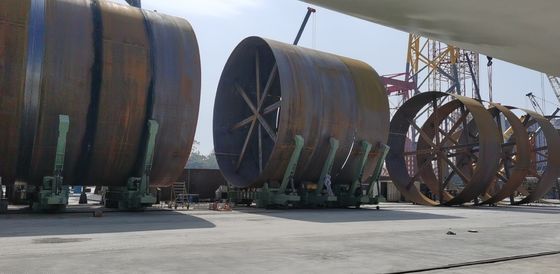

400T welding rotator specially designed for suction bucket production line, using for suction bucket jacket of the offshore wind power foundation;



Embraceing hydraulic support arm; Steel & rubber combined wheel; Suitable for diameter upto 13m;






Description:



  • Suction bucket production welding rotator is composed by 1power rotator, 1idler rotator & control box. Each rotator with 2pcs of hydraulic bracing support at each end of the rotator.

  • Conventional type welding rotator adjustable for column diameter 3m~13m;

  • Power rotator is driven by double motor. Reducer adopts cycloidal planetary gear reducer or worm reduction gear mode.

  • Steel & rubber combined wheel. Steel wheel at side to reinforce the loading strength, Polyurethane (rubber) wheel at middel contacting with suction bucket to increase friction torque

  • With motorzied traveling bogie mobile on the rail, working with fit up rotator as suction bucket welding production automation line.

  • Extention funciton of linkage control with other equipments, realize automatic welding of circumferential seam.

  • Specially designed for offshore wind power industry, using for type of offshore foundation as sucktion bucket jacket.






Main technical parameters



Type

Work load Limit

(ton)

suitable size of job

(mm)

Roller diameter &width

(mm)

Motor power
(Kw)

Speed

control

HGK400 400 Φ3000-13000 Φ700×100(steel)x2pcs + Φ700×300(PU)x2pcs 2×7.5

VFD

stepless



Suction Bucket Jacket Welding Rotator Embrace Hydraulic Support Arm Offshore Foundation 0




Feature:



  • The production is according with mechanical standard JB/T 9187-1999.

  • Hydraulic bracing support could correct the ellipse shape due to job itself gravity deformation.

  • Special designed for gaint diameter thin wall thickness column/cylindrical body, such as petrochemical refiner, suction bucket and so on.

  • Specially designed for thin wall thickness large diameter cylindrical job.

  • With advantages of advanced technology, reliable quality and simple operation.




Suction Bucket Jacket Welding Rotator Embrace Hydraulic Support Arm Offshore Foundation 1

Suction Bucket Jacket Welding Rotator Embrace Hydraulic Support Arm Offshore Foundation 2

Suction Bucket Jacket Welding Rotator Embrace Hydraulic Support Arm Offshore Foundation 3

Suction Bucket Jacket Welding Rotator Embrace Hydraulic Support Arm Offshore Foundation 4

Suction Bucket Jacket Welding Rotator Embrace Hydraulic Support Arm Offshore Foundation 5


Points you may concern:

Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
