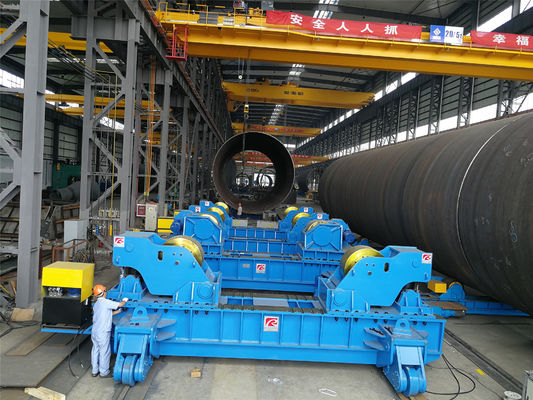

1200t Growing Welding Rotator Monopile Foundation Fabrication Line

1200t Growing Welding Rotator Monopile Foundation Fabrication Line
large.img.alt
1200t Growing Welding Rotator Monopile Foundation Fabrication Line 1200t Growing Welding Rotator Monopile Foundation Fabrication Line 1200t Growing Welding Rotator Monopile Foundation Fabrication Line 1200t Growing Welding Rotator Monopile Foundation Fabrication Line 1200t Growing Welding Rotator Monopile Foundation Fabrication Line

Large Image :  1200t Growing Welding Rotator Monopile Foundation Fabrication Line

Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO
Model Number: HGK-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1set (including 1 power unit & 1 idler unit)
Price: Contact for detail
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 50 working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 60 set/year

1200t Growing Welding Rotator Monopile Foundation Fabrication Line

Description
Equipment: 1200T Growing Welding Rotator Application: Monopile Foundation Fabrication
MP Dia. Range: 3000mm~8000mm Work Load Limit: 1200t/pair (1power & 1idler)+400t/ilder(2idler)
Rotation Capacity: 1200t/power Rotator Travel Capacity: 1200t/power Rotator
Idler: Hydraulic Liftable Cylinder Power Supply: Fit For Local Standard
High Light:

1200t Welding Rotator

,

Monopile Foundation Welding Rotator

,

Hydraulic Cylinder Welding Rotator

Monopile Foundation Fabrication Line 1200t Growing Weld Rotator 1 Power 3 Fit Up Idler






Brief introduction:

  • 1200t growing weld rotator using for offshore monopile foundation fabrication.

  • Composed by 1200t welding rotator (work load limit 1200t/1power & 1idler) + 800t fit up rotator(work load limit 400t /idler rotator);




Description:

  • The 1200t growing weld rotator is composed by 1 power rotator, 3 hydraulic idler rotator, electric control system, wireless controller, hydraulic system and so on.

  • Power rotator is driven by twin motor via special heavy duty gearbox. Bottom pedestal install motorized trolley mobile on the rail.

  • All idler rotators are with hydraulic lift cylinder. Weld rotator idler safety work load 600t. Fit up idler safety work load 400t. All idler are with idle trolley installed at bottom of pedestal.

  • Idler rotator wheels are liftable driven by hydraulic cylinder, using to adjust the MP position.

  • Control cabinet installed on power rotator moving along with it.

  • Hydrualic system installed on idler rotator moving along with idler.

  • Wireless controller with effective range no less than 100m.





Wireless pendant controller functions

  • Forward/stop/reverse
  • Rotation speed
  • Driving vehicle forward/stop/reverse
  • Emergency-stop






Main technical parameters



1200t Growing Welding Rotator Monopile Foundation Fabrication Line 0





Equipment 1200T offshore monopile welding rotator
Composed 1drive unit + 1idler unit (hydraulic lift)
Work load limit 1200Ton (1power & 1idler)
MP dia. range ø3,000~ø8,000mm.
Wheel material Forged steel
Roller center moving distance and adjustment method

1.The idler roller seat is fixed by bolts.

2.Adjust the center distance of the roller with bolt holes.

Rotator walking method

1. One unit of rotator is electric walking and the other one is unpowered walking.

2. When the roller bed is walking, the maximum load is 1000 tons.

3. A group of rotator can move on the track at full load.

4. Electric walking speed is 230mm ~2300 mm/min

Hydraulic station

1.Independent hydraulic station for each rotator.

2.Each hydraulic cylinder is equipped with an independent oil pressure gauge, and there is a comparison table of pressure-convertible load, which is recorded in the manual.

Rotator control function

1.Low voltage (24V) wired (30M)/wireless remote control (100M).

2.Control cable length 30m, and must be provided a set control cable for spare parts.

3.The grounding of the electrical components of the control box must meet the electrical code requirements.

4.Cylinder lifting stroke and walking control.

5.Stop & E-stop button and synchronized function.

6.The remote control must have the above functions.

7.If the wireless remote control is damaged, it can use the wired control to operate.

8.Each hydraulic cylinder can operate independently and with linkage capability

Electronic control part

1.Hydraulic station and power control box need to be protected.

(windproof, dustproof, waterproof)

2.Electronic control box and elements can be fast disassembled.

3.The electronic control box and components need to adapt to the

subtropical & island-type climate.

4.Perfect protection circuit (windproof, dustproof, waterproof).




Feature:

  • Top-class electronics elements, stepless adjustable speed of the driven part in CE marked.

  • Strong and durable construction creates a very high stability.

  • All idler with hydraulic liftable cylinder, effectively adjusting the MP position.

  • Wheel material is special material forged steel suitable for heavy duty work piece

  • Power rotator with motorized trolley, by which able to take the monopile mobile along with the rail.

  • Realizing ground logistic to decrease the crane/hoist using.





Monopile 2000t Assembling Rotator Offshore Foundation Fit Up Welding Production Line 3
Monopile 2000t Assembling Rotator Offshore Foundation Fit Up Welding Production Line 4

Monopile 2000t Assembling Rotator Offshore Foundation Fit Up Welding Production Line 5

Monopile 2000t Assembling Rotator Offshore Foundation Fit Up Welding Production Line 6

Monopile 2000t Assembling Rotator Offshore Foundation Fit Up Welding Production Line 7



What Ronniewell can do for Ronniewell customers:

  • Give you high quality products.
  • Give you five-star price.
  • Give you suitable recommendation.
  • Give you good after-service.
  • Give you professional technical guide.
  • Warmly welcome you visit our factory.


Points you may concern:

Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
