Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control

Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control
large.img.alt
Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control

Large Image :  Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control

Product Details:
Place of Origin: Wuxi, China
Brand Name: Ronniewell
Certification: CE, ISO
Model Number: HGK-700
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: To be confirmed with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30 working days after down payment
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 20 sets per month

Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control

Description
Equipment: 700T Tank Turning Roll Structure: Motorized Traversing On The Rail
Work Load Limit: 700t/pair (1power & 1idler) Tank Dia. Range: 2m~10m
Rotation Speed: 100~1000mm/min Variable Frequency Wheel: Forged Steel Wheel
Control: Wireless Pendant Controller Power Supply: Fit For Local Standard
High Light:

700t tank turning roll

,

tank turning roll 700t

,

lpg tank turning roll

Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control





Brief introduction:



Tank turning roll with safety working load 700t/pair (1power & 1idler) using for LPG bullet tank growing line


Heavy forged steel wheel. Motorized trolley traversing on the rail.

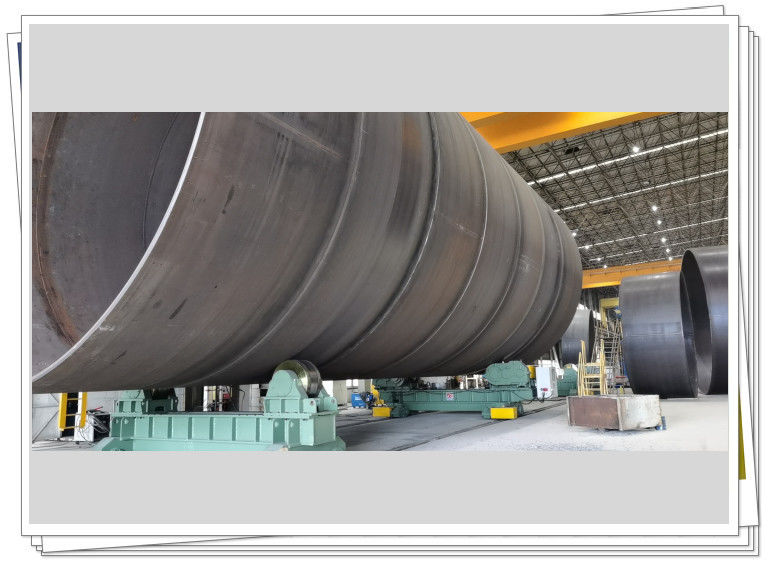

Traverse 700T Bullet Tank Turning Roll 10m LPG Vessel Welding Rotator Remote Control 0







Description:


  • Bullet tank turning roll is composed by 1power rotator & 1 idler rotator.

  • Power rotator is composed by pair of motorized driven forged steel wheel seat, pedestal, motorized trolley & electric control system.

  • Idler rotator is composed by pair of idle forged steel wheel seat, pedestal & idle trolley.

  • Interval distance of the wheel seats could be adjusted by reserved bolt screw on pedestal, suitable for tank diameter range 2m~10m.

  • All motion of the tank turning rolls are completed on wireless pendant controller.







Main Technical Parameters


Type Max. load (Ton) suitable size of job (mm) wheel Diameter and Width (mm) Motor power (Kw)
HGK700 700 Φ3000-10000 Φ900×500 2×11KW







Feature of bullet tank turning roll:


  • Top class electric works, comply with CE crieteria.

  • Fored steel wheel suitable for heavy duty bullet tank/offshore foundation/monopile and so on.

  • Power rotator wheels are double-motor driven, via special made gear box to drien the wheel rotating.

  • Motorized trolley could take the tank traversing on the rail, the ground logistic could instead of crane hoist, by which increase the safety, decrease labor cost & highly boosting working efficiency.

  • Usually it is working with hydraulic shell to shell fit up rotator & welding column boom as offshore monopile outer circumferential seam welding line.








Competitive Advantage:


  • With lubrication system.

  • VFD rotary speed control, improving the reliability of operation.

  • Forged steel wheel ensure a durable using life.

  • Inverter and main electric elements are Siemens/Schneider or equal brand.

  • Accept testing before delivery.

  • Accept special design and custom.






8x8 Column Boom Manipulator Welding For Vessel Tower 0



8x8 Column Boom Manipulator Welding For Vessel Tower 1



8x8 Column Boom Manipulator Welding For Vessel Tower 3

8x8 Column Boom Manipulator Welding For Vessel Tower 4



Monopile Production Equipment 12x6 Welding Column and Boom SAW Manipulator Welder Chair 5

What Ronniewell can do for Ronniewell customers:

  • Give you high quality products.
  • Give you five-star price.
  • Give you suitable recommendation.
  • Give you good after-service.
  • Give you professional technical guide.
  • Warmly welcome you visit our factory.


Points you may concern:

Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.

Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.

After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
