|Equipment:||30t YG Fit Up Rotators||Structure:||Fixed On The Ground|
|Configuration:||Work With HGKZ Fit Up Rotator & HGK Weld Rotator||Function:||Align Tank Sections Welding Seam|
|Safety Work Load:||50T||Tank Dia. Range:||1000mm~5000mm|
|Section Length:||2000mm~3000mm||Hydraulic System Pressure:||21Mpa|
|Control:||Wireless Pendant Controller||Power Supply:||Fit For Local Standard|
vessel fit up rotator,
flexible fit up rotator

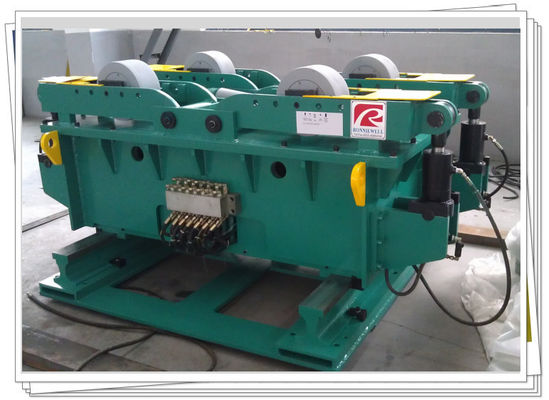

Vessel Automatic Welding Line Tank Assembly Turning Rolls Flexible Hydraulic Fit Up Rotators
Safety work load 50t YG fit up rotators specially using for tank sections assembling & automatic welding production line
Suitable for tank diameter 1000mm~5000mm with single section length 2000mm~3000mm;
Video demonstration: https://youtu.be/f3LXxDSsRN0
Main Technical Parameters
|Vessel dia. Range (mm)||1000~5000|
Dia.& width of roller (mm)
|Adjustable mode||Hydraulic cylinder 3D adjustment|
|Motor power (kW)||4|
|Roller speed (m/min)||Idler without power|
YG fit up rotators motion video: https://youtu.be/8V2eK6vkP4Y
Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.
Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.
After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.
Welcome to follow us on following social media:
Auto tank welding widely used self aligned polyurethane roll welding rotator Names
Self-aligning welding turn roll , self-aligning rotator , Self-aligning roll bed , welding turning roll , welding rotator , roll bed , self adjustable turning roll , self adjustable rotator , self adjustable roll bed , pipe welding turning roll , pipe welding rotator , pipe welding roll bed ,pipe welding roller ,conventional welding turning roll , conventional welding rotator , conventional welding roll bed , blasting turning roll , blasting rotator , blasting roll bed , painting turning roll , painting rotator , painting roll bed etc.
