100ton Conventional Pipe Welding Rotator , Pipe Rotators for Welding

Product Details

Place of Origin: Wuxi, China

Brand Name: Ronniewell

Certification: CE, ISO, Certification of original

Model Number: HGZ

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: To be confirmed with us

Packaging Details: Mainframe naked, spare parts packed in case

Delivery Time: 30 working days after down payment

Payment Terms: 30% TT in advance, 70% TT before the shipment

Supply Ability: 20 sets per month

Get Best Price
Highlight:

tank rotators

,

tank turning rolls

Features:
Movable|high Efficient
Application:
Vessel|pipe|tank
Certification:
CE
Product Name:
Pipe Welding Rotator
Roller Material:
PU Wheel|Polyurethane|Steel
Type:
Self-aligning
Features:
Movable|high Efficient
Application:
Vessel|pipe|tank
Certification:
CE
Product Name:
Pipe Welding Rotator
Roller Material:
PU Wheel|Polyurethane|Steel
Type:
Self-aligning

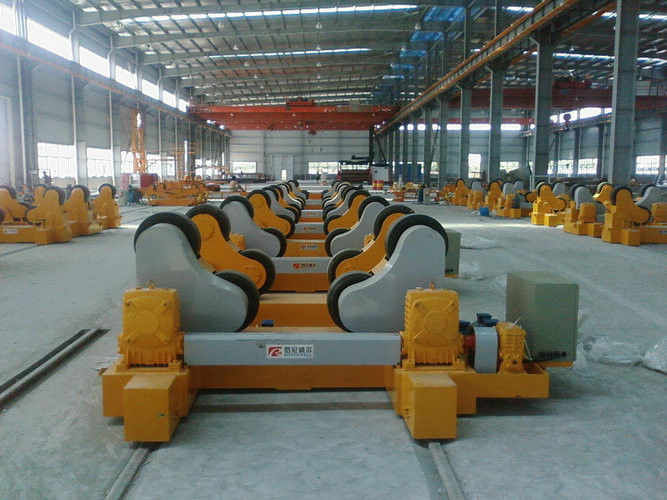

100ton Conventional Pipe Welding Rotator , Pipe Rotators for Welding

100ton Conventional Pipe Welding Rotator , Pipe Rotators for Welding

100ton Conventional Pipe Welding Rotator , Pipe Rotators for Welding 0





Quick Detail:





Self Aligning Rotator construction such that the trunnion brackets which support the wheels automatically align themselves when changing from one diameter to another, no manual adjustment whatsoever is required.







Description:





Each section supports the vessel / Job on four points ensuring better traction, and on machines of 3 T to 500 T capacity and upwards 50 metric tonnes all four wheels of the drive section are positively driven. This four point suspension is an added advantage when on handling thin walled vessels.







Applications:





The two top leading wheels of the drive section incorporate clutches which are loosened prior to loading the vessel and the top wheels can rotate freely when the vessel is loaded; thus regardless of weight if the vessel is lowered centrally between the frames, or firstly on to one  wheel only, no damage can be sustained by the transmission.







Specifications:





If you do not see anything that matches your requirements please contact us to discuss your needs further.



Type

HGZ-5

HGZ-10

HGZ-20

HGZ-40

HGZ-60

HGZ-80

HGZ-100

Payload  (T)

5

10

20

40

60

80

100

Suitable size of job(mm)

Minφ

250

320

500

600

750

850

1000

Maxφ

2300

2800

3500

4200

4800

5000

5500

Roller Specification(mm)

PU wheel
Diameter(mm)

250

300

350

400

450

500

500

PU wheel
Width(mm)

100

120

120

120

120

120

120

Metal wheel
Diameter (mm)

240

290

340

390

440

490

490

Metal wheel
Width (mm)

20

25

30

40

50

60

80

Roller speed  m/h

6-60

6-60

6-60

6-60

6-60

6-60

6-60

Power of motor (KW)

0.75

1.1

1.5

3

4

4

5.5

Speed adjusting way

VFD







Competitive Advantage:





● Inverter and Main electric elements are Siemens/Schneider or equal brand.

● Motor is UK brand Invertek.

● VFD rotary speed control, improving the reliability of operation.

● Steel or PU roller which can ensure a long time using (at least 2 years).

● With lubrication system.

● Accept testing before delivery.

● Accept special design and custom.
