Features: High Precision|high Frequency Cutting Speed: 20 - 1000 Mm/ Min
Cutting Speed: 20 - 1000 Mm/ Min Automation Degree: Automatic
Drive Type: Servo Metal Processed: Carbon Steel
Product Name: CNC Flame Plasma Cutting Machine
High Light:

steel plate cutting machine

,

hydraulic cutting machine



Industrial CNC Flame Plasma Cutting Stainless Steel High Precision





Quick points:

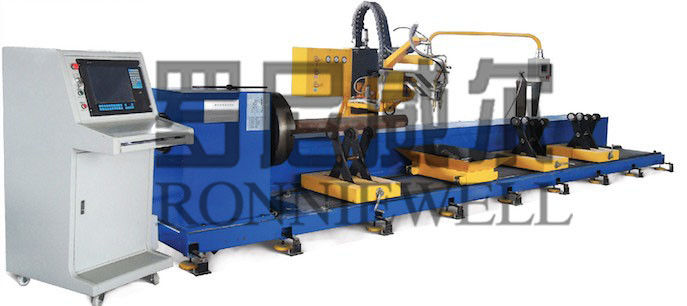

Adopt 5axis/6axis CNC multi axis linkage chuck type clamping pipe method,Application of flame / plasma on the pipe cutting, beveling, intersecting line processing.

This equipment and instrument design and produce accord to industrial and international electrician standard (IEC).



Description:

CNC intersecting line cutting machine, is based on five axis digital control system as standard,only the flame cutting to cut more than 45°,Auxiliary axis (P axis) can be chosen when there is less than 65°,called six axis digital control system.The multi axis control system to control the whole machine.Six axis respectively:

Y axis:Along the central line of the workpiece rotation.

X axis:The moving body moves along the axial direction around.

A axis:The torch around the surface of the workpiece cutting point axial runout.

B axis:The torch around the surface of the workpiece cutting point radial runout.

Z axis:Cutting torch lifting.

P axis:The torch along the axial direction to move up and down.

 All six axis are control by AC Servo control system ,drove by AC servo motor.They use of industrial computer control,it is full digital, high stability and reliability.

All gas road are equipped with electromagnetic valve, regulating valve,The system can also be configured for automatic pulse igniter,Can easily realize the intelligent control of cutting process.The oxygen gas delivery to the torch through the pipeline,In order to meet the needs of a variety of cutting process,Gas supply system with multiple groups of solenoid valve used to control the on-off of various flow.A variety of gas pressure is regulated by the regulator,or you can call it Pressure relief valve.



● Main technical parameters

● Cutting diameter:                                    Φ50~Φ630 mm

● Flame cutting wall thickness:                         6~50 mm

● Plasma cutting wall thickness:                        1~16 mm

● The maximum weight:                                   10000 Kg

● Workpiece length:                      6000 mm,Increase support up to 9000mm.

● The ellipticity:                                      ≤2%

● Flame cutting speed:                              100~750 mm/min

● Plasma cutting speed:                             500~3000 mm/min

● The number of control axis:                            6 axis

● The maximum stroke cutting torch lifting:              400 mm

● Cutting oxygen pressure:                             0.784~0.882 MP

● The preheating oxygen pressure:                       0.392 Mpa

● Gas pressure:                                         0.049 Mpa

● Air pressure:                                         0.8 Mpa

● Overall dimensions (length * width * height):      7800×1900×2000 mm

● Machine power:                                    5 kW(not include plasma)





Applications:



CNC cutting machine is used for various shape-cutting on metal-plate, mainly composed of CNC system,longitudinal &transverse driving system, main frame, longitudinal rail, plasma cutting system and auto-height controller. Of which the CNC system and servo system are international renowned brands. The machine is the ideal plate-cutting equipment for customers thanks to its merits of advanced configuration, superior performance, accurate cutting, good quality and stable working. The user-friendly HMI can improve productivity and economic profits greatly.



Industrial CNC Flame Plasma Cutting Stainless Steel High Precision 0Industrial CNC Flame Plasma Cutting Stainless Steel High Precision 1Industrial CNC Flame Plasma Cutting Stainless Steel High Precision 2Industrial CNC Flame Plasma Cutting Stainless Steel High Precision 3Industrial CNC Flame Plasma Cutting Stainless Steel High Precision 4Industrial CNC Flame Plasma Cutting Stainless Steel High Precision 5

Competitive Advantage:





 Name

    Quantity

  Manufacturer

    Note

Gantry frame

     1 set



Frame structure, the whole sand tempering treatment

electrical control system



     1 set



The main components are used the French Schneider

24KG rail

    16 m



High precision grinding machine is machined

   Reducer

     3 sets

   NEUGART

    Germany



US Hypertherm Powermax200 plasma power

 1 set





US Hypertherm PHC

 1 set



Control high precision



US Hypertherm EDGE

 1 set

  BEIJING START

(F2200)

 Stable performance, strong anti-jamming ability

  drive bearing



     1 set

  HWL



  Wiring drag chain

     2 sets



High strength wear resistant type

  Servo motor

     3 sets

   Panasonic



 JP

Fastcam Cutting software (standard edition)

     1 set

   Fastcam



 AUSTRALIAN
