Product Details
Place of Origin: Wuxi, China
Brand Name: Ronniewell
Certification: CE, ISO, Certification of original
Model Number: HGK
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: To be confirmed with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30 working days after down payment
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 20 sets per month
Features: |
Movable|high Efficient |
Application: |
Vessel|pipe|tank |
Certification: |
CE |
Product Name: |
Pipe Welding Rotator|tank Turning Rolls |
Roller Material: |
Polyurethane|Steel |
Type: |
Adjustable |
Features: |
Movable|high Efficient |
Application: |
Vessel|pipe|tank |
Certification: |
CE |
Product Name: |
Pipe Welding Rotator|tank Turning Rolls |
Roller Material: |
Polyurethane|Steel |
Type: |
Adjustable |

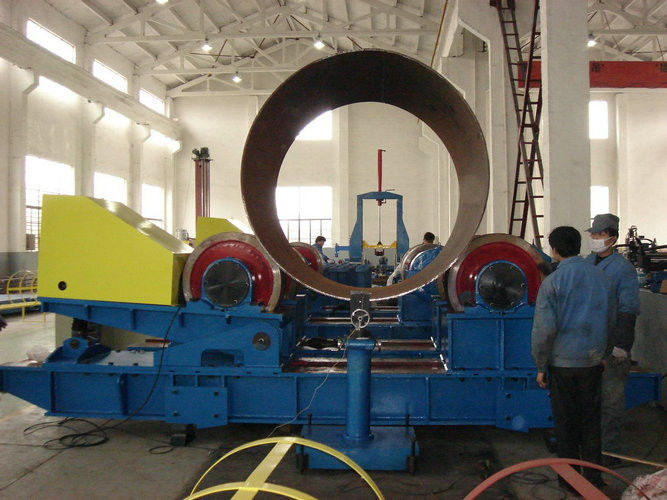

150T bolt Heavy Duty Rotator Turning Rolls Steel / Polyurethane Wheel
Quick Detail:
Conventional Rotators are built in capacities from 1T to 2000 tonnes. The frame is of robust fabricated construction and is machining on the top and underneath to ensure perfect alignment. Both the drive and the idler frames are provided with robust fabricated and machined wheel brackets which support the axles and bearings of the rollers.
Description:
Applications:
This bolt adjustable welding rotator is produced according to MMBEI Standard ZBJ33003-1990. Self-design and manufacture combined the advantages of oversea competitors and requirements of domestic and overseas customers. It is suitable for automatic welding of circular seam cylinder, with advantages of practical, reliable, stable and easily operates etc. It is widely used in the range of job cutting, polishing, assemble etc.. It is one of ideal equipments of improve automaticity and efficiency.
Specifications:
If you do not see anything that matches your requirements please contact us to discuss your needs further.
|
Type |
Max. load (kg) |
suitable size of job (mm) |
wheel Diameter and Width (mm) |
Linear speed m/h) |
Motor power (Kw) |
Change |
|
|
PU wheel |
Metal wheel |
||||||
|
HGK 5 |
5000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
6-60 |
2×0.37 |
Veriable frequency stepless driving |
|
HGK10 |
10000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
6-60 |
2×0.55 |
|
|
HGK20 |
20000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
6-60 |
2×1.1 |
|
|
HGK40 |
40000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
6-60 |
2×1.5 |
|
|
HGK60 |
60000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×50 |
6-60 |
2×2.2 |
|
|
HGK80 |
80000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×60 |
6-60 |
2×2.2 |
|
|
HGK100 |
100000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×80 |
6-60 |
2×2.2 |
|
|
HGK160 |
160000 |
Φ1100-6000 |
/ |
Φ620×220 |
6-60 |
2×3 |
|
|
HGK250 |
250000 |
Φ1200-7000 |
/ |
Φ700×260 |
6-60 |
2×4 |
|
|
HGK400 |
400000 |
Φ1300-7500 |
/ |
Φ800×320 |
6-60 |
2×5.5 |
|
|
HGK600 |
600000 |
Φ1400-8500 |
/ |
Φ900×400 |
6-60 |
2×7. |
|
Competitive Advantage:
● Inverter and Main electric elements are Siemens/Schneider or equal brand.
● Motor is UK brand Invertek.
● VFD rotary speed control, improving the reliability of operation.
● Steel or PU roller which can ensure a long time using (at least 2 years).
● With lubrication system.
● Accept testing before delivery.
● Accept special design and custom.
