Ronniewell Specialized Roller Beds for Suction Caisson Fabrication

Heavy-Duty Support Systems Engineered for Large-Diameter Thin-Walled Suction Anchors – Up to 14m Diameter

Overview

Ronniewell offers specialized roller bed systems engineered specifically for the demanding requirements of suction caisson (suction pile anchor) fabrication in the offshore wind and oil & gas sectors. These systems address the unique challenges of manufacturing large-diameter, thin-walled suction anchors—structures that can weigh up to 1,000 metric tonnes and are similar in appearance to giant steel "water bottles" with the bottom cut off.

Unlike conventional wind tower or monopile fabrication, suction caissons present a distinct set of manufacturing challenges: extremely large diameters (up to 14,000mm+), thin wall thicknesses (as thin as 35mm), and significant self-weight deflection issues during fit-up and assembly. Ronniewell's suction caisson roller bed systems are purpose-built to overcome these challenges.

The Suction Caisson Manufacturing Challenge

Suction caissons are anchors used for offshore oil rigs and wind farms, deployed by placing the open end on the ocean floor and creating negative pressure to "anchor" the pile. Their construction requires precision fit-up of multiple can sections weighing over 60 metric tonnes each.

Critical fabrication challenges:

Ronniewell Suction Caisson Roller Bed System – Key Features

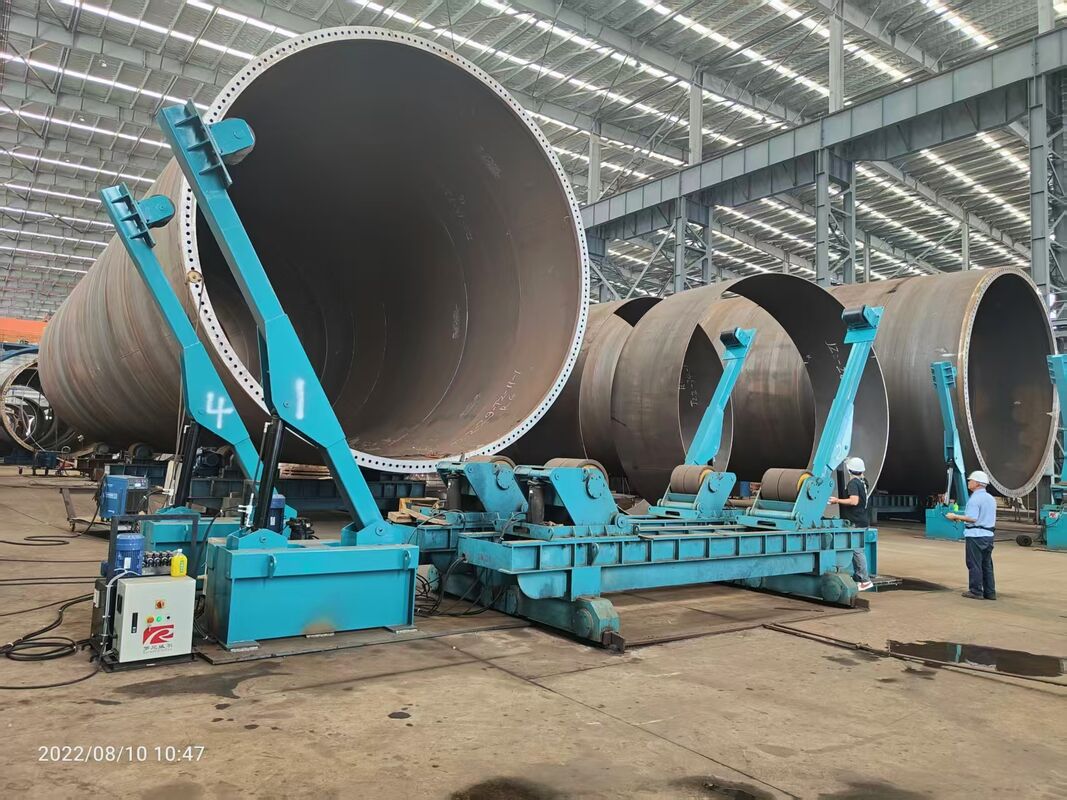

1. Lateral Support System (Side Stops / Stabilizers)

Ronniewell's suction caisson roller beds are equipped with lateral side support systems that address the fundamental challenge of thin-walled large-diameter cylinder stability.

• Multi-Point Support Configuration: In addition to the bottom roller supports, adjustable side stabilizers contact the cylinder laterally, distributing support forces across additional contact points.

• Adjustable Support Angles: The side stabilizers feature hinged support frames with adjustable inclination angles to optimize support node positioning for different workpiece diameters and wall thicknesses.

• Stable Triangular Structure: The support frame, adjustment arm, and base form a stable triangular configuration, ensuring robust support even under heavy loads.

2. Anti-Deflection Engineering

• Prevents self-weight deflection of thin-walled shells during fit-up and welding operations

• Maintains roundness integrity during circumferential welding

• Optimized support configuration ensures repeatable and accurate fit-up for multi-section caissons

3. Flexible Section Handling

• Traveling Capability: Rail-mounted roller beds with motorized bogies enable seamless movement of heavy caisson sections along the production line

• Horizontal Positioning: The roller bed system can be configured for horizontal section assembly, minimizing scaffolding and high-altitude welding operations while improving safety and quality

• Height Adjustability: Roller spacing can be adjusted to raise or lower the workpiece incrementally, eliminating the need for "dogs & wedges" in the fit-up process

4. Heavy-Duty Drive System

• Double Motor Drive: Ensures stable rotation of heavy caisson sections during circumferential welding

• VFD Speed Control: Stepless speed adjustment for optimal welding conditions

• Invertek Motors with Schneider electrical components for global reliability

• Self-locking Worm Gear Reducers: Prevent accidental rotation when stopped

5. Durable Construction

• Stress-Relief Heat Treatment: All welded structural parts treated to prevent distortion

• Oversized Bearings: Extended service life under demanding loads

• Built-in Lubrication System: Reduced maintenance requirements

Technical Specifications – Suction Caisson Series

Applications in Suction Caisson Fabrication

• Horizontal section assembly: Sequential fit-up of can sections in horizontal orientation, reducing high-altitude work

• Circumferential seam welding: Stable rotation for consistent weld quality

• Fit-up alignment: Precise positioning of heavy sections

• Internal welding: Accessible horizontal configuration

• Complete vessel "growing" lines: Multiple roller bed stations in tandem for assembly of full caisson length

Compatible with: SAW, GMAW, FCAW, GTAW welding processes

Why Choose Ronniewell for Suction Caisson Fabrication?

✅ Specialized for Thin-Wall Large-Diameter – Engineered specifically for the unique challenges of suction caisson fabrication, including lateral support systems to prevent deflection

✅ Ultra-Large Diameter Capacity – Handles workpieces up to 14 meters in diameter, accommodating the largest suction caisson designs in production

✅ Deflection Control – Multi-point support design prevents self-weight deformation, maintaining roundness and weld quality

✅ Side Stabilizer Technology – Adjustable support frames provide additional contact points, eliminating localized stress concentration

✅ Horizontal Assembly Capability – Reduces scaffolding, improves safety, and increases welding quality

✅ Proven Capacity – Handles up to 14-meter diameter workpieces with 1,000+ metric tonne load capacity

✅ International Certifications – ISO9001 and CE Marking (Machinery Directive 2006/42/EC)

✅ Global Components – Invertek motors; Schneider electrical components

✅ Short Lead Time – Standard delivery: 30 working days

✅ Reliable Support – 12-month warranty, technical advisory, installation and training available

✅ Custom Engineering – In-house design team for special requirements
