Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO,CSA
Model Number: LH5050
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: pls confirm with us
Packaging Details: naked with seaworthy package
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 30 sets per month

Fit Up Automatic Tank Turning Rolls / Welding Turning Rolls High Speed

Description
Application: Pipe Fabrication Usage: LS/CS Welding
Function: Manipulate Welding Machine Feature: Travel & Rotate
Reach Range: 5000mm Boom End Load: 300kg
High Light:

rotary welding positioner

,

Column And Boom Manipulator

Fit Up Automatic Tank Turning Rolls / Welding Turning Rolls High Speed





Detail description of automatic column welding manipulator:

  • Column welding manipulators are used to locate a weld head to a desired position for welding in a stable and secure manner.

  • Once in position, the part is moved during welding to produce high quality welds.

  • A column welding manipulator can be used on a wide variety of parts and part shapes.

  • Welding is performed using GTAW, PAW, GMAW, FCAW, SAW or YAG Laser.

  • In some GMAW, SAW and FCAW welding, the standard boom can be used as a linear welding axis, as these weld processes may not required precise welding motion.

  • Column welding manipulators are a versatile and rugged solution to obtain up to 8m of lift and reach to duplicate the function of a highly skilled welder.

  • Manual or powered mobile sub-based cars can be included for varying length weldments and procedures.




Benefits over welding the part manually:

  • Able to achieve consistent weld results.

  • Able to maintain weld head over weld joint in a stable position during the weld.

  • Increases arc-on time and overall productivity.

  • Provides ability to have multi-weld stations using only one weld head, increasing your return on investment.

  • Reduced operator fatigue.

  • Reduced consumable costs.

  • Ability to have two welding process at one welding station by using both ends of the boom.

  • These benefits greatly reduce the time to prepare a part for welding and the time to finish a part after welding. Also, rework time will be reduced and part scrap will be cut.





Automatic column welding manipulator capacities:

  • As standard, Ronniewell can produce column welding manipulators with a wide capacity range from 1000 to 8000 mm strokes.

  • Boom drive: Gear rack and pinion drive.

  • Boom motor: AC Motor, adjustable speed.

  • Column Lift mechanism: Chain drive and gear box.

  • Column drive motor: AC Motor, adjustable speed.
  • King-pin base: allows 360 degrees of column rotation.

  • Safety Device to stop boom if chain should fail.





Feature of column welding manipulator:

  • Working with column welding manipulator is the next step in automated welding.

  • The column welding manipulators are initially designed to save labor costs especially at lager workpieces and when a column welding manipulator is been used in combination with a positioner or rotator.

  • Designed and robustly build to withstand rugged work environments.

  • Smooth 360 degree lockable rotation.

  • All vertical and horizontal guidings are precisely machined for smooth movement.

  • Solid state inverter for variable speed of horizontal travel and travel carriage.

  • Worm gearbox for vertical travel via AC motor, complete with brake for added safety.

  • High tensile roller chain used for vertical travel with the addition of a counter balance system with the column that provides smooth, effortless travel.

  • Anti-fall device and limit switches for all motions.




Main parameter:

Model

LH3030

LH4040

LH5050

LH6060

LH7070

Structure:

Travel &

Rotation

Travel &

Rotation

Travel &

Rotation

Travel &

Rotation

Travel &

Rotation

Boom horizontal stroke : mm

3000mm

4000mm

5000mm

6000mm

7000mm

Boom vertical stroke : mm

3000mm

4000mm

5000mm

6000mm

7000mm

Boom horizontal speed :mm/min

150-1500

150-1500

150-1500

150-1500

150-1500

Boom vertical speed : mm/min

1000

1000

1000

1000

1000

Boom horizontal motor power :kW

0.55

0.55

0.55

0.55

0.55

Boom vertical motor power :kW

2.2

2.2

3

3

3

Column rotating angle

±180°

±180°

±180°

±180°

±180°

Column rotating speed- Optional :rpm

0.75

0.75

0.75

0.75

0.75

Column rotating motor-Optional : kW

0.75

0.75

0.75

0.75

0.75

Column rotating locking method

By manual

By manual

By manual

By manual

By manual

Boom end max. loading

300kg

300kg

300kg

300kg

300kg

Trolley traveling speed-Optional:mm/min

3000

3000n

3000

3000

3000

Rail inner span(mm)-Optional:mm

G-G2000

G-G2000

G-G2000

G-G2000

G-G2500





Application:

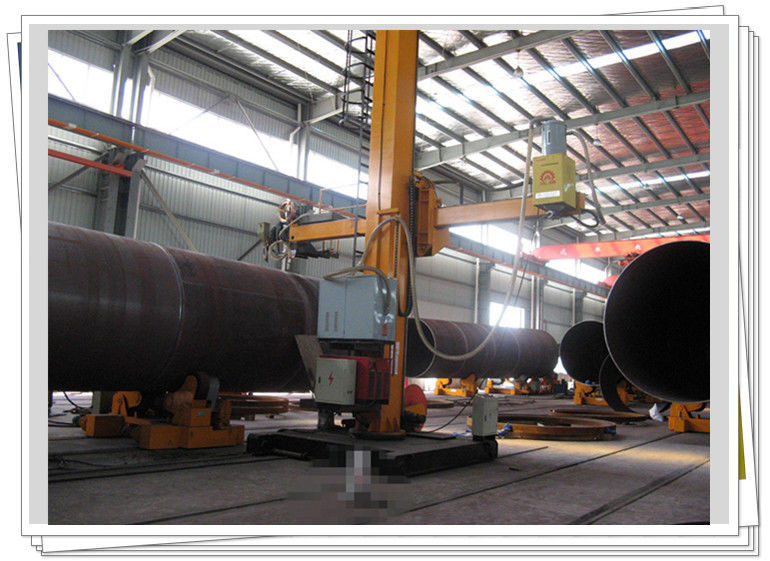

This automatic column welding manipulator can be used together with welding rotator, welding positioner and achieves the tank longitudinal and circle seam welding. According to the requirement, which can be adopted welding seam tracing and monitoring, welding flux recovery and feeding device. It has the structures of fixed type, fixed with rotation and movable with rotation type.





Competitive Advantage:

  • Inverter and Main electric elements are Siemens/Schneider or equal brand.

  • VFD rotary speed control, improving the reliability of operation.

  • With lubrication system.

  • Accept testing before delivery.

  • Accept special design and custom.





Exhibition:

Fit Up Automatic Tank Turning Rolls / Welding Turning Rolls High Speed 0





Product name:
automatic column welding manipulator, column boom automatic column welding manipulator, CaB, automatic column welding manipulator  boom,automatic welding machine, automatic column welding manipulator, cross beam column, welding manipulator;
