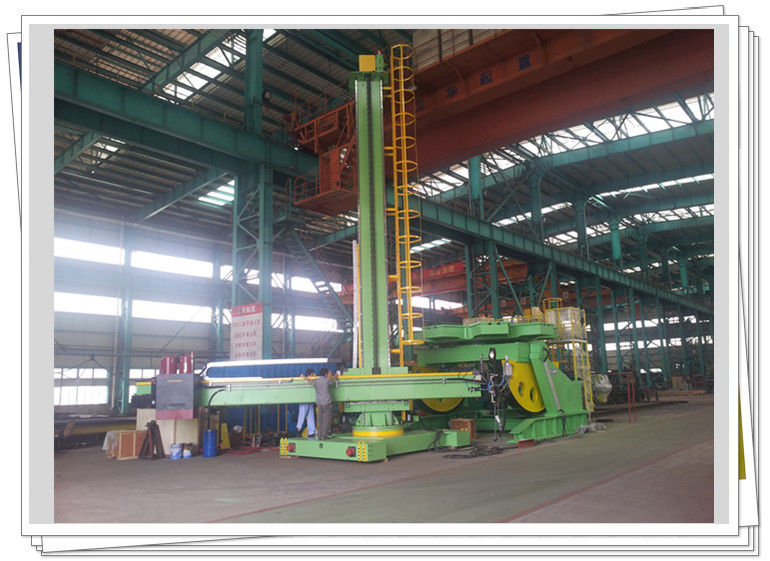

Automated Welding Manipulator Positioner For Automatic Welding Center

Automated Welding Manipulator Positioner For Automatic Welding Center
large.img.alt
Automated Welding Manipulator Positioner For Automatic Welding Center Automated Welding Manipulator Positioner For Automatic Welding Center Automated Welding Manipulator Positioner For Automatic Welding Center

Large Image :  Automated Welding Manipulator Positioner For Automatic Welding Center

Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO,CSA
Model Number: LHC8080
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: pls confirm with us
Packaging Details: naked with seaworthy package
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 30 sets per month

Automated Welding Manipulator Positioner For Automatic Welding Center

Description
Application: Petrochemical Pressure Vessel Usage: Automated Welding Center
Structure: Travel & Rotate Function: Hold Manipulate Welding Machine
Boom End Load: 500kg Reach Range: 8000mm
High Light:

rotary welding positioner

,

Column And Boom Manipulator

Automated Welding Manipulator Positioner For Automatic Welding Center





Brief introduction:

  • Welding manipulator integrate electric control system, welding system & flux recovery system(for SAW) on one platform;

  • Working with positioner,which load & manipulate weldment work position, as automatic weldin center for big size job;





Welding manipulator description:

  • Welding manipulators are used to locate a weld head to a desired position for welding in a stable and secure manner.

  • Once in position, the part is moved during welding to produce high quality welds.

  • A welding manipulator can be used on a wide variety of parts and part shapes.

  • Welding is performed using GTAW, PAW, GMAW, FCAW, SAW or YAG Laser.

  • In some GMAW, SAW and FCAW welding, the standard boom can be used as a linear welding axis, as these weld processes may not required precise welding motion.

  • Welding manipulators are a versatile and rugged solution to obtain up to 8m of lift and reach to duplicate the function of a highly skilled welder.

  • Manual or powered mobile sub-based cars can be included for varying length weldments and procedures.




Benefits over welding the part manually, including:

  • Able to achieve consistent weld results;

  • Able to maintain weld head over weld joint in a stable position during the weld.

  • Increases arc-on time and overall productivity.

  • Provides ability to have multi-weld stations using only one weld head, increasing your return on investment.

  • Reduced operator fatigue.

  • Reduced consumable costs.

  • Ability to have two welding process at one welding station by using both ends of the boom.

  • These benefits greatly reduce the time to prepare a part for welding and the time to finish a part after welding.

  • Also, rework time will be reduced and part scrap will be cut.





Feature of welding manipulator:

  • Working with welding manipulator is the next step in automated welding.

  • The welding manipulators are initially designed to save labor costs especially at lager workpieces and when a welding manipulator is been used in combinati on with a positioner or rotator.

  • Designed and robustly build to withstand rugged work environments.

  • Smooth 360 degree lockable rotation.

  • All vertical and horizontal guidings are precisely machined for smooth movement.

  • Solid state inverter for variable speed of horizontal travel and travel carriage.

  • Worm gearbox for vertical travel via AC motor, complete with brake for added safety.

  • High tensile roller chain used for vertical travel with the addition of a counter balance system with the column that provides smooth, effortless travel.

  • IP 54 pendant control station using low voltage on the generous 6m cable.

  • Anti-fall device and limit switches for all motions.






Main parameter:

Model

LH5050

LH6060

LH7070

LH8080

Structure:

Travel &

Rotation

Travel &

Rotation

Travel &

Rotation

Travel &

Rotation

Boom horizontal stroke : mm

5000mm

6000mm

7000mm

8000mm

Boom vertical stroke : mm

5000mm

6000mm

7000mm

8000mm

Boom horizontal speed :mm/min

150-1500

150-1500

150-1500

150-1500

Boom vertical speed : mm/min

1000

1000

1000

1000

Boom horizontal motor power :kW

0.55

0.55

0.55

0.75

Boom vertical motor power :kW

3

3

3

4

Column rotating angle

±180°

±180°

±180°

±180°

Column rotating speed- Optional :rpm

0.75

0.75

0.75

0.75

Column rotating motor-Optional : kW

0.75

0.75

0.75

1.1

Column rotating locking method

By manual

By manual

By manual

By manual

Boom end max. loading

300kg

300kg

300kg

300kg

Trolley traveling speed-Optional:mm/min

3000

3000

3000

3000

Rail inner span(mm)-Optional:mm

G-G2000

G-G2000

G-G2500

G-G3000





Competitive Advantage:

  • With lubrication system.
  • Motor is UK brand Invertek.
  • VFD rotary speed control, improving the reliability of operation.
  • Inverter and Main electric elements are Siemens/Schneider or equal brand.
  • Accept testing before delivery.
  • Accept special design and custom.





Delivery picture:

Automated Welding Manipulator Positioner For Automatic Welding Center 0
