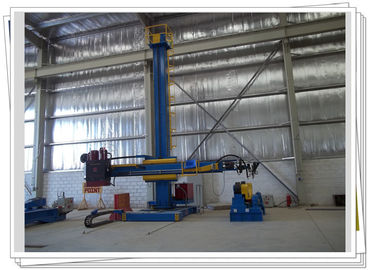

Automatic Pipeline Welding Equipment SAW Welding Machine Customized

Automatic Pipeline Welding Equipment SAW Welding Machine Customized
large.img.alt
Automatic Pipeline Welding Equipment SAW Welding Machine Customized Automatic Pipeline Welding Equipment SAW Welding Machine Customized Automatic Pipeline Welding Equipment SAW Welding Machine Customized

Large Image :  Automatic Pipeline Welding Equipment SAW Welding Machine Customized

Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO,CSA
Model Number: LH5050
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: pls confirm with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 30 sets per month

Automatic Pipeline Welding Equipment SAW Welding Machine Customized

Description
Turnkey Solution: Available Boom Vertical Stroke: 5000mm
Boom Horizontal Stroke: 5000mm Structure: Rotate With Manual Bogie
Boom End Max. Loading: 300kg Voltage: 220/380/440 V / Customize
High Light:

wind tower welding line

,

Column And Boom Manipulator

Automatic Pipeline Welding Equipment SAW Welding Machine Customized





Brief introduction:

  • Purpose: Automatic welding center for circular job inner /outer longitudinal / circumferential seam welding;
  • Advantage: save human labor cost, constant & assured good welding quality;





Pipe welding booms feature:

  1. Welding boom is kind of auxiliary welding equipment used for automatic welding center.
  2. It can equipped with various welding machine either Chinese or international brand.
  3. Stretching of cross boom adapts AC frequency converter stepless speed control and run with steady speed.
  4. Head equipped with electric cross slides, can adjust position of welding .
  5. Chain break-resistant and anti-slip device in boom to guarantee safety. .
  6. Braking device can ensure column work in safe environment.
  7. Customized manipulator requirements are accepted.
  8. Automatic flux feeding, recovering devices, wire feeder device, working platform and  chair ( Optional ).





Description of pipe welding boom:

  1. The welding boom normally used together with welding machine & flux recovery system(for SAW welding).
  2. Its structure including stationary type, the stationary and rotating type, and the all orientation type.
  3. The movement of the boom is adopted with frequency conversion control, and also you can select PLC programming controller, which is good in mechanic precise, is accurate in positioning.
  4. We are able to design and manufacture special manipulators for our customers.
  5.  The pipe welding boom can be used together with welding rotator or welding positioner.
  6. It is widely used in industries as boiler, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.
  7.  It has the advantage of in advanced structure,complete function, easy operation, which ensures improving of welding quality.
  8. According to the requirement, it can be adopted welding seam tracing and monitoring, welding flux recovery and feeding device.





Technical parameter list:

Model

LH4040

LH5050

LH6060

LH7070

LH8080

Structure

Travel &

Rotation

Travel &

Rotation

Travel &

Rotation

Travel &

Rotation

Travel &

Rotation

Boom horizontal stroke (mm)

4000

5000

6000

7000

8000

Boom vertical stroke (mm)

4000

5000

6000

7000

8000

Boom horizontal

speed (mm/min)

150-1500

150-1500

150-1500

150-1500

150-1500

Boom vertical

speed ( mm/min)

1000

1000

1000

1000

1000

Boom horizontal

motor power (kW)

0.55

0.55

0.55

0.55

0.75

Boom vertical

motor power (kW)

2.2

3

3

3

4

Column rotating angle

±180°

±180°

±180°

±180°

±180°

Column rotating speed

 Optional (rpm)

0.75

0.75

0.75

0.75

0.75

Column rotating motor

Optional (kW)

0.75

0.75

0.75

0.75

1.1

Column rotating

locking method

By manual

By manual

By manual

By manual

By manual

Boom end max. loading

300kg

300kg

300kg

300kg

300kg

Trolley traveling speed

Optional (mm/min)

3000n

3000

3000

3000

3000

Rail inner span

Optional (mm)

G-G2000

G-G2000

G-G2000

G-G2500

G-G3000





Option:

  1. Welding seam tracker;
  2. Welding oscillator;
  3. Flux recovery & convery machine;
  4. Lincoln welding machine;
  5. China welding machine;





Exibition:

Automatic Pipeline Welding Equipment SAW Welding Machine Customized 0





Product name:
pipe welding boom, column boom pipe welding boom, CaB, welding column  boom,automatic welding machine, automatic welding center, cross beam manipulator;
